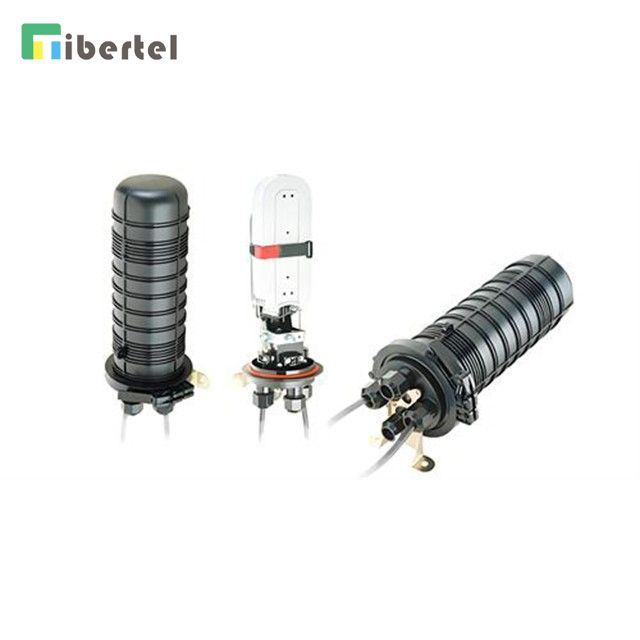

Vertical type Mechanical sealing Optical Fiber Enclosure OFC-D002
Home » Products » FTTx Solutions » Fiber optic enclosure » Vertical type Mechanical sealing Optical Fiber Enclosure OFC-D002

PRODUCTS

Share to:

Vertical type Mechanical sealing Optical Fiber Enclosure OFC-D002

  • TJ01E1204
Availability:
Delivery Date:15-working daysBrand Name:T&J
Model:OFC-D002Application:Aerial, Underground duct or Direct burial
Sealingstructure:Mechanical sealingDimention:dia.190×430mm
Weight (excluding outside box):2500g~3100gCable ports:4
Max. capacity:96 bunchy fiber, 144for ribbon fiberCore capacity per tray:12 or 24
Compliant:RoHSOrigin:China

1. Scope of application

This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.



The scope of application is: aerial, underground, duct, hand-holes. The ambient temperature ranges from -40℃ to 65℃.



2. Basic structure and configuration

2.1 Dimension and capacity

Outside dimension (Height x Diameter)

430mm×190mm

Weight (excluding outside box)

2500g—3100g

Number of inlet/outlet ports

4 pieces

Diameter of fiber cable

Φ8mm~Φ16 mm

Capacity of FOSC

Bunchy: 12-96 (cores), Ribbon: up to 144 (cores)


2.2 Main components

No.

Name of components

Quantity

Usage

Remarks

1

FOSC cover

1 piece

Protecting fiber cable splices in whole

Height x Diameter

355mm x 150mm

2

Fiber optic splice tray (FOST)

Max. 6 trays (bunchy)

Max. 4 trays (ribbon)

Fixing heat shrinkable protective sleeve and holding fibers

Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces)

3

Fiber holding tray

1 pcs

Holding fibers with protective coat


4

Base

1set

Fixing internal and external structure


5

Plastic hoop

1 set

Fixing between FOSC cover and base


6

Seal fitting

1 pc

Sealing between FOSC cover and base


7

Seal rings for inlet/outlet ports

4pcs

For the inner seal of inlet/outlet ports; the diameter is 12.5mm,can shrink to 7mm


8

Pressure testing valve

1 set

After inject air, it is used for  pressure testing and sealing   testing

Configuration as per requirement

9

Earthing deriving device

1 set

Deriving metal parts of fiber cables in FOSC for earthling connection

Configuration as per requirement


2.3 Main accessories and special tools

No.

Name of accessories

Quantity

Usage

Remarks

1

Heat shrinkable protective sleeve


Protecting fiber splices

Configuration as per capacity

2

Nylon tie


Fixing fiber with protective coat

Configuration as per capacity

3

Earthing wire

1 piece

Putting through between earthling devices

To put through as per actual requirement

4

Abrasive cloth

1 piece

Scratching fiber cables


5

Labeling paper

1 piece

Labeling fibers


6

Special wrench

2 pieces

Installing and tightening nut of reinforced core and nut (plastic) of   inlet/outlet tube


7

Measuring paper

1 piece

To measure perimeter, of which its diameter is enlarged with seal tape

To measure perimeter with the corresponding measuring paper

8

Seal tape

1 ring

Enlarging diameter of fiber cable which fits in with gasket ring.

Configuration as per specification

9

Insulation tape

1 ring

Enlarging diameter of fiber  cable for easy fixing


10

Metal hoop

1 set

For wall mounting and pole hugging


11

Buffer tube



decided by customers

Hitched to fibers and fixed with FOST, managing buffer.

Configuration as per requirement

12

Desiccant

1 bag

Put into FOSC before sealing for desiccating air
