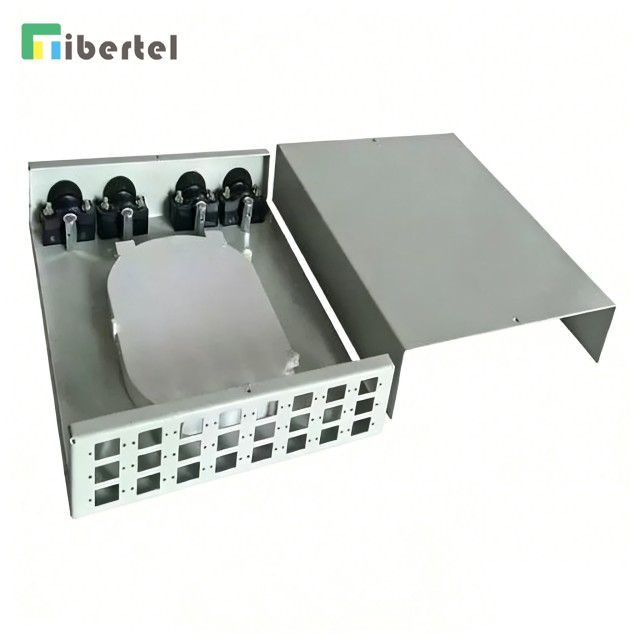

TJ01E402C
Features
Wall Mount type with buckle lock for easy operation.
The box use good quality Cold Rolled Steel material.
Surface finished with Powder Coating.
Fiber core available in 2-24 fibers, trays available to add as per requested.
Available for bunchy and ribbon cables.
Available for LC, SC, FC, ST, MU, MTRJ and E2000 adaptors.
Specification:
Part No. | TJ01E402C |
| Dimension | 102*150*41.3mm (12F), 260*130*55mm (24F) |
Capacity | 2-24 fibers |
Adaptor panel | LC/SC/FC/ST/E2000 as per request |
Material | Cold Rolled Steel |
Thickness | 0.8mm or on request |
Color | Black and ivory white available. |
| Working temperature | -25℃~ +70℃ |
Relative humidity | = 85% (30℃) |
| Atmosphere pressure | 70 ~ 106Kpa |
| Insulation resistance | ≥2x104MΩ / 500VDC |
