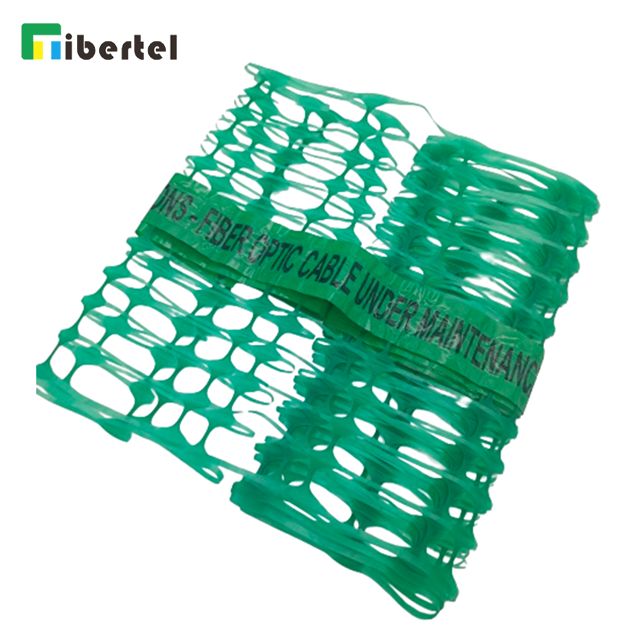

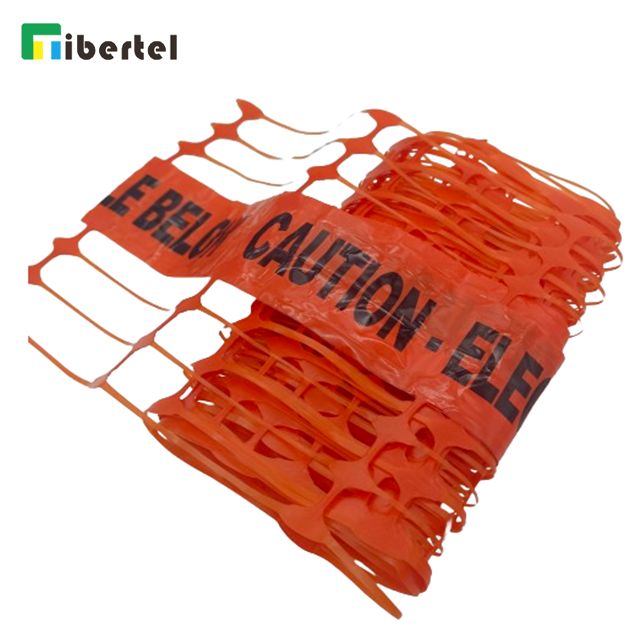

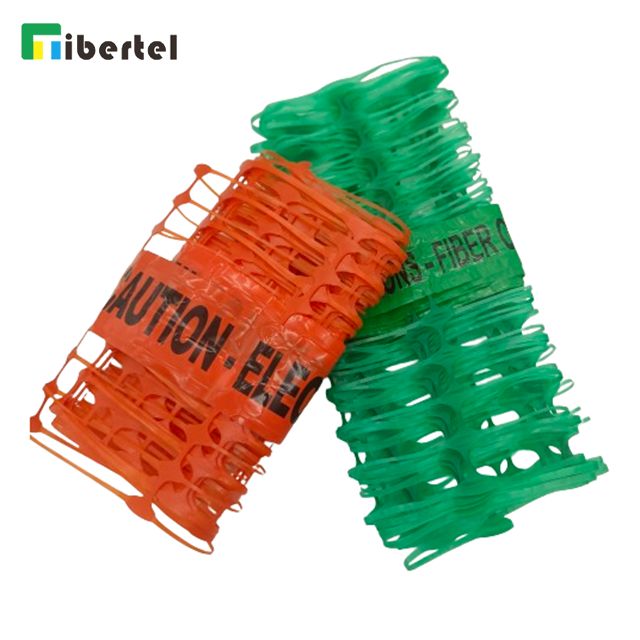

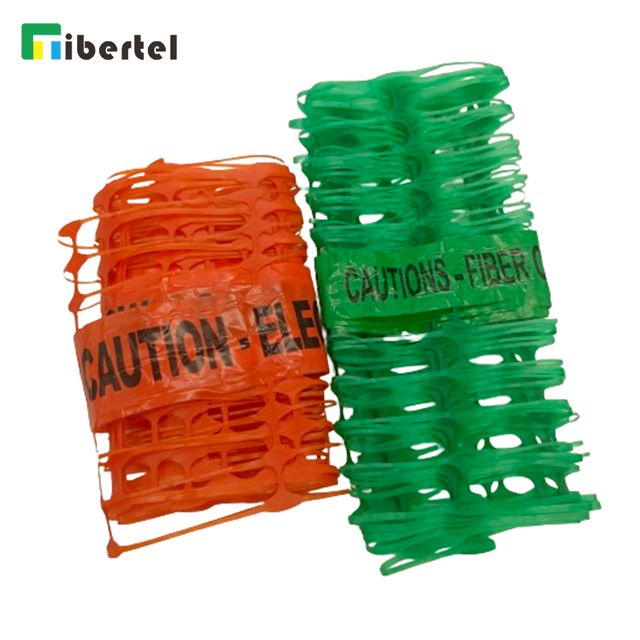

Plastic Warning Mesh TJ07WM100

Home » Products » Site Solutions » Warning tape » Plastic Warning Mesh TJ07WM100

PRODUCTS

Underground waming mesh is a material composed of a mesh made of propylene or polyethylene, combined with printed waming tape, metal wires, orother plastic flms. It is used for warning and tracking markers set underground. Its function is similar to waming tape, but it has better performance, a longer lifespan, and overall cost savings compared to warning tape.

Item	Plastic Warning Mesh
Part No.	TJ07WM100
Material	LDPE Mesh+304SS 0.4MM+OPP
Base Color	Blue,Yellow,Red, Orange, Green or on request
Printing color	Black
Roll Width	200mm
Roll Length	100m
Roll Diameter	210mm
Mesh Weight	60g/㎡
Aperture Size	100*26mm
Wire Diameter	0.4mm
Brand	Fibertel

Mesh Technical Characteristics:
Tensile Strength	>3.5N/mm2
Elongation Strength	>35%

Plastic Mesh For Construction Plastic Warning Mesh HDPE Road Warning Mesh Blue Red Yellow Green Orange Plastic Safety Barrier Fence Netting

RECOMMRND PRODUCTS

Warning Tape

Warning Tape with 2 Stainless Steel Integrated Tracer Wires

Caution Tape High Quality PE Plastic

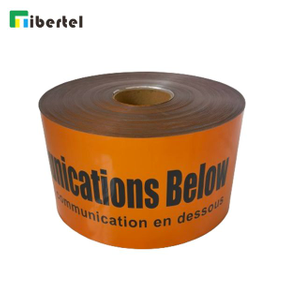

Aluminum foil Detectable Caution Tape

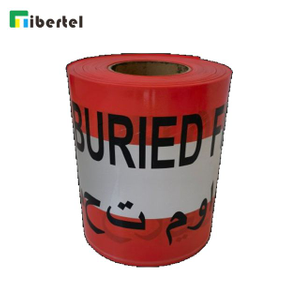

Aluminum Foil + PE Detectable Warning Tape

Pulley Drop Wire 4 with Aluminum Wheel

Pulley Drop Wire 6 with Plastic Wheel

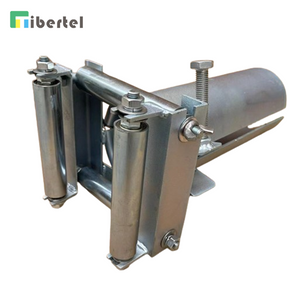

Bell Mouth with 4 Rollers TJ07XBM4R

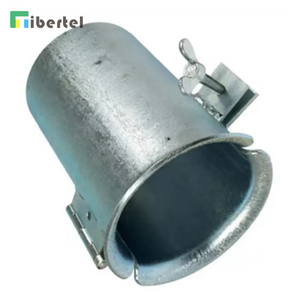

Expanding Bell Mouth TJ07EXBMx

Aluminium Cable Roller Straight

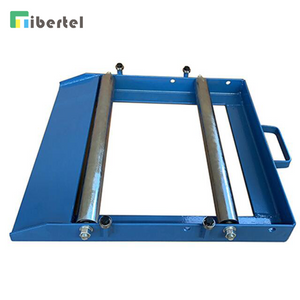

Dispenser Cable Roller 8B

HDPE Tube Micro Duct Bundle Direct Bury (DB) 12-way 7/3.5mm

HDPE Tube Micro Duct Bundle Direct Bury (DB) 24-way 7/3.5mm+1-way 14/10mm

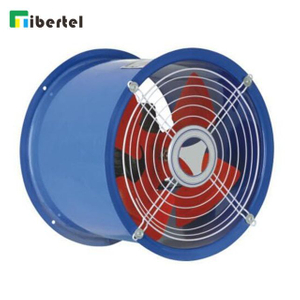

Model SF Axial Flow Fan TJ06DSxxx

Pipeline Type Ventilator TJ06VPxxx

Material	Width	Length	Function	Wire Line
Polyethyiene	20cm	100m	Delectable	"S" Shape
Propyiene	30cm	150m	Non detectalble	Straight line
Stainless Steel	40cm	200m		Single line
Copper	50cm	250m		Double lines
	120cm	300m		Tripie lnes

Material	Width	Length	Function	Wire Line
Polyethyiene	20cm	100m	Delectable	"S" Shape
Propyiene	30cm	150m	Non detectalble	Straight line
Stainless Steel	40cm	200m		Single line
Copper	50cm	250m		Double lines
	120cm	300m		Tripie lnes

Availability:



Inquire Add to Basket
