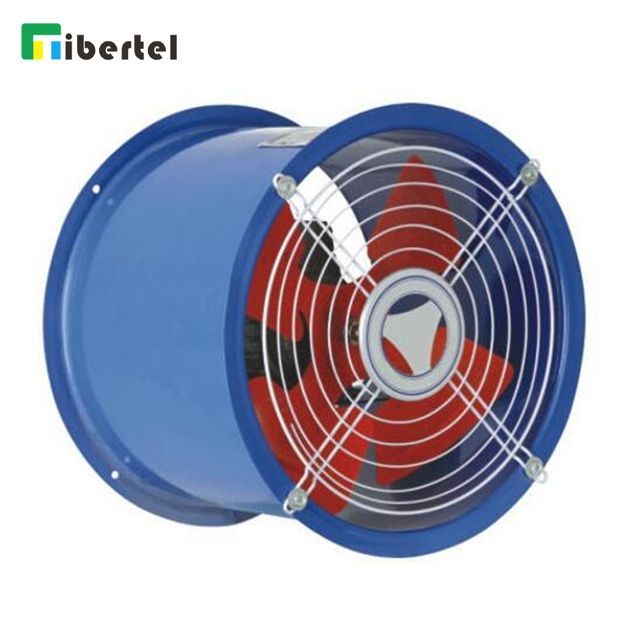

Model SF Axial Flow Fan TJ06DSxxx

  • TJ06DSxxx

  • Fibertel

Availability:
Inquire Add to Basket
Performance Introduction
Model SF series axial-flow ventilator has smooth streamline surface with exceptionally good rigidity, film
paddle-wheel structure, even and flat screen cover, elegant and pleasing outline and tones.
Model SF series fan is divided into pipe-line type, wall type, post type four kinds according to the use
requirements. It is separated into 12machine number according to the paddle-wheel diameter.
This series product is widely applicable for the wall type exhaust, post blast, pipeliev entilation in the mining
and industrial enterprises, civil purpose buildings. It can also be used in the working metallurgy, power
station, communications etc and the storage ventilation air-conditioner system.


Technical Parameters


Machine
Speed
(r/min)
Flow
(m3/h)
Power
(KW)
Total
Pressure
(Pa)
Voltage
(v)
Noise
dB(A)
TJ06DS022
2800
2000
0.18
155
220/380
≤62
TJ06DS024
1450
1000
0.09
25
220/380
≤45
TJ06DSA22
2800
2800
0.37
230
220/380
≤65
TJ06DSA24
1450
1600
0.12
45
220/380
≤50
TJ06DS032
2800
4200
0.55
250
220/380
≤68
TJ06DS034
1450
3200
0.37
69
220/380
≤55
TJ06DSA32
2800
6000
0.75
265
220/380
≤71
TJ06DSA34
1450
4200
0.55
100
220/380
≤67
TJ06DS042
2800
15000
1.5
280
220/380
≤75
TJ06DS044
1450
6270
0.75
150
220/380
≤72
TJ06DS054
1450
10400
1.1
210
220/380
≤74
TJ06DS064
1450
18700
2.2
300
380
≤80
TJ06DS064
1450
16870
1.5
280
380
≤80
TJ06DS074
1450
21500
2.2
330
380
≤85
TJ06DS074R
1450
24500
3
350
380
≤85
TJ06DS084
1450
37200
4
435
380
≤82
TJ06DS086
960
28000
2.2
196
380
≤82
TJ06DS096
960
34470
4
250
380
≤82
TJ06DS106
960
50000
4
260
380
≤88
TJ06DS128
720
58000
4
280
380
≤90
TJ06DS148
720
72000
5.5
320
380
≤93


Previous:
Next:
air blower ventilation fan portable mini portable wind turbine ventilation fan vertical blade Industrial Ventilation Fan portable ventilation blower Movable Fan
RECOMMRND PRODUCTS

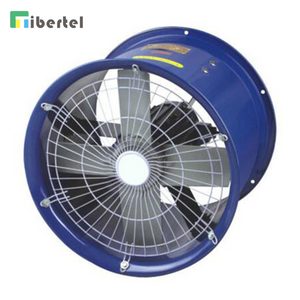

SF-B Type Oil Resistant Moisture-proof Axial Flow Fan TJ06DFBxxx
SF-B Type Oil Resistant Moisture-proof Axial Flow Fan TJ06DFBxxx

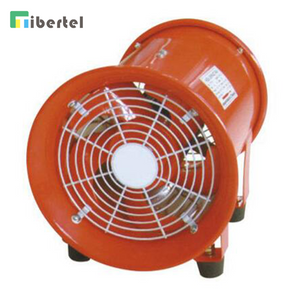

Stationary Type Ventilator TJ06VSxxx
Stationary Type Ventilator TJ06VSxxx

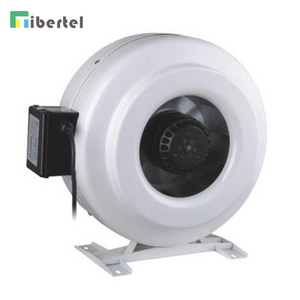

CDR Series External Rotor Coaxial Pipe Fan TJ06DRxxx
