Outdoor DLC-DLC SM Breakout Cable

Delivery Date: 20 days Brand Name: T&J
Model: GYFJH Fiber type: SM
Fiber count: 2 Cable diameter: 7.0mm
Outer Jacket material: LSZH Connector type: LC
Sub-unit diameter: 2.0mm Insertion Loss: <= 0.2dB
Cable length: 1~300 meters Origin: China

Outdoor DLC-DLC SM  Breakout Cable

Outdoor DLC-DLC SM Breakout Cable

Applications:
Used on FTTA Base station
Outdoor protected branch
With armored tube for protecting the fibers
Telcordia GR-326 Compliant

Technical Indication:
Insertion Loss (dB): <=0.2db
Return Loss (dB): MM=>35dB; SM=>50dB
Length (M): 1-300 meters


Cable Specifications:


Item

Technology parameter

Cable type

GYFJH-2B1,Ф7.0mm

The cable weight   Kg/km

43

The OD of sheath   mm

7.0(+0/-0.2)

The material of sheath

LSZH

The thick of sheath mm

1.0±0.1

The color of sheath

black

The minimum bending radius  mm

10D

Attenuation   dB/km

≦1.5 at 1300nm,≦ 3.5   at 850nm

Short tension  N

400

Short crush   N/100mm

1000

Using temperature   ℃

-40~+85

Sub-unit   Technology parameter

The color of tight layer

Nature

The material of tight layer

LSZH

The OD of tight fiber   mm

0.90±0.05

Fiber specification( multimode)

50/125

Strength member in sub-unit

Aramid yarns

The OD of sub-unit   mm

2.0    (out diameter control 1.9±0.1mm)

The color of sub-unit

Gray,Orange

The material of sub-unit

LSZH

The color of filler

black

The material of filler

LSZH

The OD of filler

2.0    (out diameter control 1.9±0.1mm)

Strength member in sub-unit

Aramid yarns



Details:

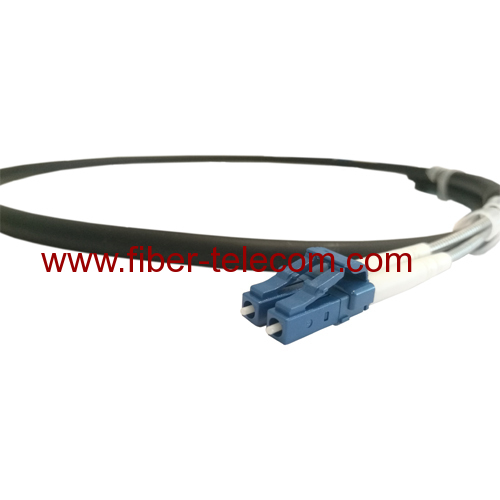

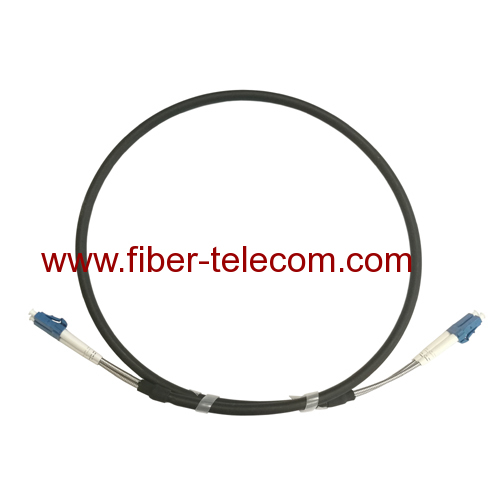

Outdoor DLC-DLC SM Breakout Cable

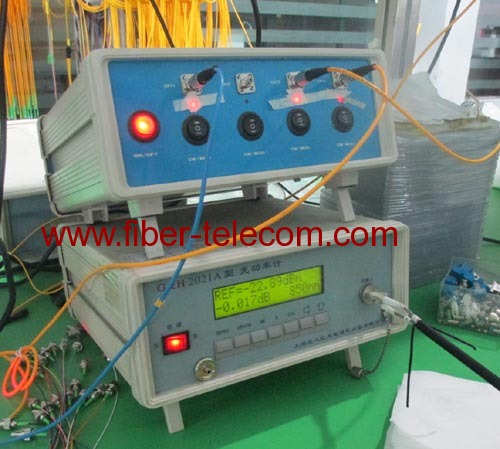

Testing:


Outdoor DLC-DLC SM  Breakout Cable
