GJFJBZY
Fibertel
Availability: | |
---|---|
Delivery Date: | 7 working days | Brand Name: | T&J |
---|---|---|---|
Model 1: | GJFJBV for PVC jacket | Model 2: | GJFJBZY for LSZH jacket |
Fiber type: | SM / MM | Fiber Count: | 2 |
Dynamic Min.Bending Radius(mm): | 20H | Static Min.Bending Radius(mm): | 10H |
Short Term Crush (N/100mm): | 500 | Jacket material: | PVC or LSZH |
Jacket color: | Yellow for SM, Orange for MM | Origin: | China |
Delivery Date: | 7 working days | Brand Name: | T&J |
---|---|---|---|
Model 1: | GJFJBV for PVC jacket | Model 2: | GJFJBZY for LSZH jacket |
Fiber type: | SM / MM | Fiber Count: | 2 |
Dynamic Min.Bending Radius(mm): | 20H | Static Min.Bending Radius(mm): | 10H |
Short Term Crush (N/100mm): | 500 | Jacket material: | PVC or LSZH |
Jacket color: | Yellow for SM, Orange for MM | Origin: | China |

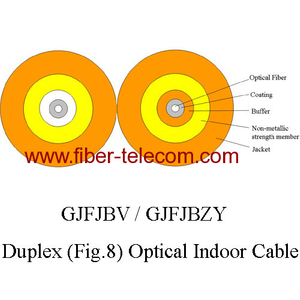

The structure of GJFJBV(GJFJBZY) [flat in door optical cable used for telecommunication with non-metallic central strength and tight-buffered PVC sheath (flat indoor optical cable used for telecommunication with non-metallic central strength and tight-buffered PE flame-retardant sheath)] is covering the tight-buffered material of high cohesional strength out of the single mode and multi-mode optical fiber to become the tight-buffered optical cable. The cable takes high-strength aramid yarn as the strengthen device, and extrude a PVC sheath (LSZH sheath) out of the cable
Applications:
Ideal for interconnect applications for instruments and communication equipments
Used in indoor cabling
Technical Parameters(Typical Values):
Fiber Count | O.D. (mm) | Tensile Strength (N) | Tensile Strength (N) | Crush (N/100mm) | Crush (N/100mm) | Min.Bending Radius(mm) | Min.Bending Radius(mm) | Cable Weight |
Short Term | Long Term | Short Term | Long Term | Dynamic | Static | (kg/km) | ||
2 | 3.0*5.0 | 150 | 100 | 500 | 100 | 20H | 10H | 17.8 |
2 | 4.4*7.4 | 300 | 200 | 500 | 100 | 20H | 10H | 28 |
Ordering Information:
1) Outer Jacket Material:
GJFJBV cabled with PVC jacket
GJFJBZY cabled with LSZH jacket
2) Outer Jacket Color:
Single mode (SM) - Yellow
Multimode (MM) - Orange
OM3- Aqua
3) Tight Buffer Color:
Blue / Orange / Green / Brown / Slate / White / Red / Black / Yellow / Violet / Pink / Qqua
4) Fiber Type:
B1- G.652
B1.3- G.652.D
B4- G.655
E1- EasyBand G.657
E1.1- EasyBand Plus G.657
A1- 50/125um
A1b- 62.5/125um
A1H- HiBand 50/125um
A1bH - HiBand 62.5/125um
M1- MaxBand 150
M3- MaxBand 300
M5- MaxBand 550
5) Delivery Length:
Standard Reel Length is 2000meters, Other length available on request
6) Cable Printing:
Flat Duplex Indoor Cable + SM / MM + Fiber Type + Length Mark
Or on request with OEM brand
