P01

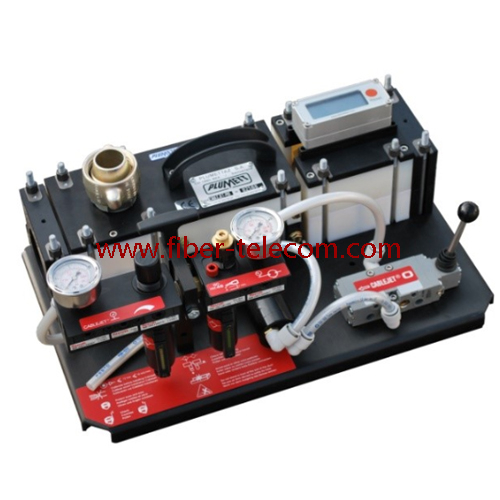

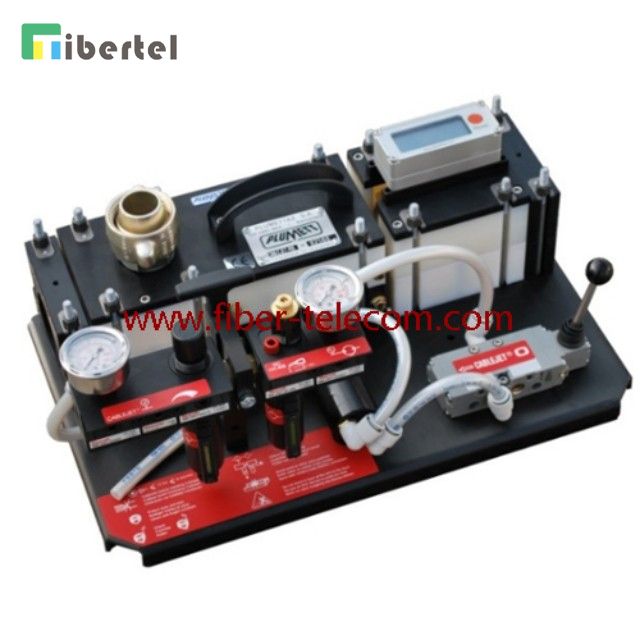

CableJet™
Description:
The CableJet™ is designed for blowing or floating telecommunication cables (optical fibre, coax or multipair) in preinstalled ducts.
Chracteristics:
For cables Φ9mm to Φ18mm and for ducts OD 20 to 63mm, description as per echnical data sheet no. 298.061-en.
Specifications
| Standard vertion | Cablejet |
| Type | P10 |
| Cable dia. (mm) | 9-18 |
| Duct OD (mm) | 20-63 |
| Drive unit | Pneumatique |
| Max. air consumption of motor (m3/min) | 0.5( a 4 bar) |
| Pushing force (N) | 0-300 |
| Linear pressure on cable (N/cm) | 0-100 |
| Max. speed (m/min) | 100 |
| Max. air pressure (bar) | 12 |
| Max. water pressure (bar) | 25 |
| Dimension of apparatus LxWxH (mm) | 520*320*230 |
| Dimension of apparatus with case LxWxH (mm) | 600*400*340 |
| Dimension of tools and accessories case LxWxH (mm) | 600*400*250 |
| Weight of machine (kgs) | 21 |
| Total weight (kgs) | 47 |
