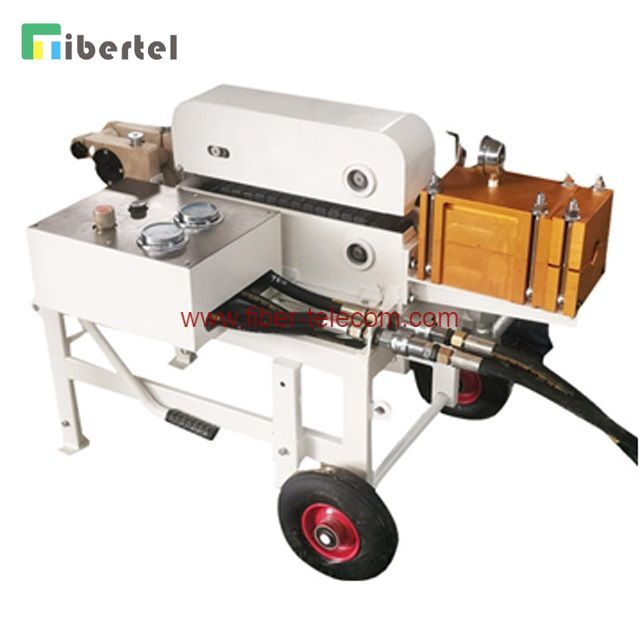

Part No. | TJ07CB06S |
Core pressure Mpa | 12.5 |
Hydraulic motor output volume ml/r | 19.9 |
Hydraulic motor Speed r/min | 30~1000 |
Rated pressure Mpa | 10 |
Maximum transportation force n | 700 (consecutive adjustable) |
Transportation speed m/min | 8-80 (consecutive adjustable) |
Applicable cable diameter mm | φ10~24.3 |
Applicable silicon core pipe mm (out diameter /inner diameter) | 26/32, 28/34, 33/40, 38/46, 42/50 |
Dimension mm | 1390×700×900 |
Weight kg | 125 |
Pump station essential technical parameter |
Maximum pressure Mpa | 15 |
Hydraulic flux l/min | 10 |
Gasoline hp/rpm | 5.5/1800 |
Length of tube m | 5 |
Fuel tank capacity L | 40 |
Dimension mm | 780×470×780 |
Weight kgs | 75 |
Configuration | cable blower set, hydraulic pump, a set sealing piece that specify the cable outside diameter and silicon core pipe by customer, a set pipe sealing inspection equipment. |
