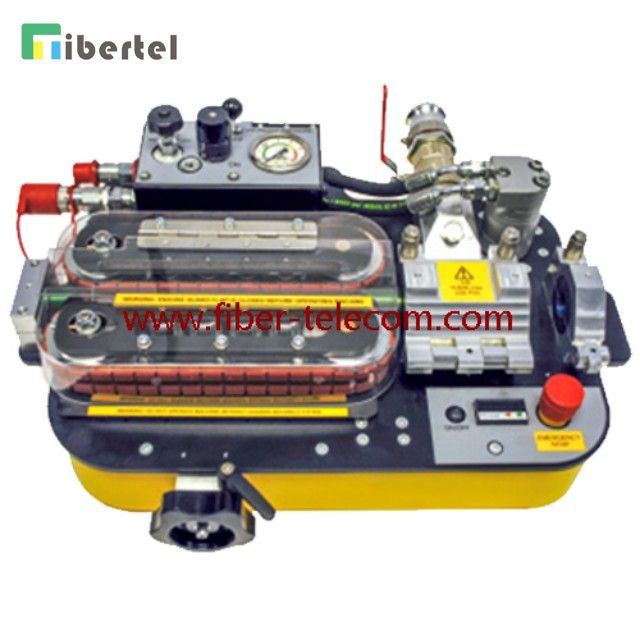

JetStream®
Description
The JetStream® has been designed to provide maximum cable protection, combined with the performance and reliability of hydraulic drive. The profiled double drive belt system is driven by single 32 cc hydraulic motor, powered by a supplied power pack with oil cooler.
The electronic monitoring system provides read-out of speed and distance, helps protect against duct obstructions and includes an emergency stop. The JetStream is adjustable to suit a wide range of cable diameters .4.5-20 mm, and duct diameters of 0.75-1.50 in SDR (12 mm-50 mm OD).
Specifications
Cable Diameter | 4.5-20mm |
Duct Size (Outside Dia.) | 0.75”-1.5” SDR (12-50mm OD) |
Cable Speed (Adjustable) | 0-280ft/min (0-85m/min) |
Air Pressure | 215psi (15 bar) 450cfm (12M3/min) |
Power Requirement | Supplied hydraulic power pack |
Dimension (mm) | 19”x24.5”x9.2” (484x620x233mm) |
Net Weight | 68lbs (31kgs) |
JetStream® Cable Blowing Machine including case | P/N 89950 Weight: 132lbs (60kgs) |
Main Features
Automatic cable centralizing
Synchronous high grip profiled compliant drive belts
Tabletop design
Variable speed controls
Digital cable speed and length monitoring
Integral air valves and pressure gauges
Polycarbonate safety guarding
Low maintenance
Wheeled travel case
Tool kit
