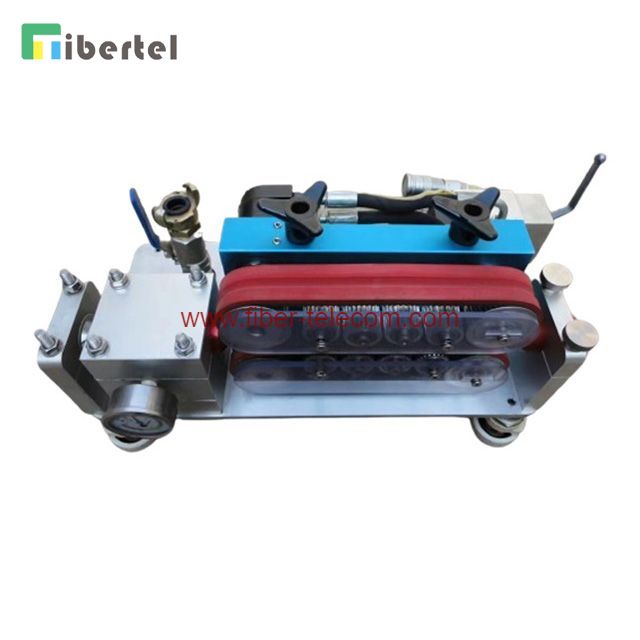

Fibertel Cable Blowing Machine TJ07CB70C

Home » Products » FTTx Solutions » Cable blowing machine » Fibertel Cable Blowing Machine TJ07CB70C

PRODUCTS

Fibertel Cable Blowing Machine TJ07CB70C apply to long-distance communications cable construction. Generally the blow length achieve 1000~2000m.

RECOMMRND PRODUCTS

Part No.	TJ07CB70C
Core pressure Mpa	4~8
Transportation force N	0~1000
Transportation speed m/min	0~110
Rated pressure bar	13
Application cable diameter mm	Φ8~Φ22
Application Pipe diameter mm	Φ20~Φ55
Blowing micro duct	10/8: 1~3pcs
Dimension mm	600320300
Packing dimension mm	700400450
Weight kgs	32
Pump specification
Engine model	Honda GX390
Power kw	11
Dimension mm	800600700
Packing dimension mm	1000800900
Weight kgs	75
Configuration	Blowing machine, Gasoline pump, Hydraulic tubing, conveyor belt, Cable plugs M15/M18/M22, Pipe plugs 32mm/40mm, Sealing for pipe plugs 32/40/50, Optical cable sealing φ 8- φ 22mm, High pressure gas pipe joint and sealing, Fiber optic cable guide groove φ16/φ22, Clamp φ40mm, Gas chamber sealing φ4mm, Hydraulic sealing, Pipe Cutter, Wrench, User manual

Part No.	TJ07CB70C
Core pressure Mpa	4~8
Transportation force N	0~1000
Transportation speed m/min	0~110
Rated pressure bar	13
Application cable diameter mm	Φ8~Φ22
Application Pipe diameter mm	Φ20~Φ55
Blowing micro duct	10/8: 1~3pcs
Dimension mm	600320300
Packing dimension mm	700400450
Weight kgs	32
Pump specification
Engine model	Honda GX390
Power kw	11
Dimension mm	800600700
Packing dimension mm	1000800900
Weight kgs	75
Configuration	Blowing machine, Gasoline pump, Hydraulic tubing, conveyor belt, Cable plugs M15/M18/M22, Pipe plugs 32mm/40mm, Sealing for pipe plugs 32/40/50, Optical cable sealing φ 8- φ 22mm, High pressure gas pipe joint and sealing, Fiber optic cable guide groove φ16/φ22, Clamp φ40mm, Gas chamber sealing φ4mm, Hydraulic sealing, Pipe Cutter, Wrench, User manual
