E2000/APC-E2000/APC Single Mode Simplex Fiber Optic Patch Cord
Home » Products » FTTx Solutions » Fiber optic patch cord » E2000/APC-E2000/APC Single Mode Simplex Fiber Optic Patch Cord
Share to:

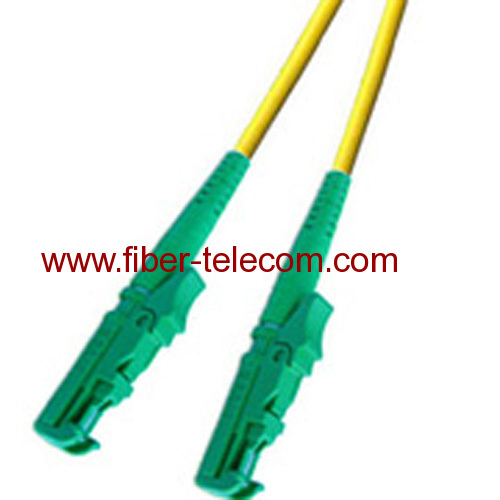

E2000/APC-E2000/APC Single Mode Simplex Fiber Optic Patch Cord

Delivery Date: 15-working days Brand Name: T&J
Connector type: E2000 Fiber Core: Simplex
Fiber type: SM Ferrule polishing: APC
Cable O.D.: 1.8mm~3.0mm Cable Length: 0.5~200 meters
Insertion Loss: <=0.2dB Return Loss: =>50dB
Temperature Range: -40℃~+80℃ Origin: China

Fiber Optic Patch Cord E2000/APC-E2000/APC Single mode Simplex 3.0mm, 1~200 meters.

It can also be with 2.0mm & 0.9mm boots.

Part No.: CEESMSX3 + length


Description:

T&J fiber optic patch cords provide the highest level of connectivity for all your fiber interconnect applications.

Manufactored and tested to the tightest specifications. T&J patch cords meet Telcordia GR-326 requirements. Our precision zirconia ferrules and exvironmentally rugged connectors and cable assemblies ensure lasting, repeatable connections.


Applications:

Ethernet, Data Communication LAN and WAN.

• Fast • High-speed Enterprise Serves.

• Multiplexors, Switches, and Routers.

• Optical Access and ATM Networks Equipment.

• Optical Transport and Telecommunications Switching Equipment


Features:

• Excellent Return Loss.

• Ultra Low Insertion Loss.

• Singlemode.

• Simple.

Performance Specifications:

• E2000.

• APC.

• Telcordia GR-326 Compliant.

• Available in 3.0mm

• Cable Jacket: PVC or LSZH

• Fiber: Tight-buffer or Easy-strip.


Technical Indication:

Type Insertion Loss Return Loss
Multi Mode (PC/UPC) <=0.2dB  >=35dB
Single Mode (PC/UPC) <=0.2dB  >=50dB
Single Mode (APC) <=0.2dB  >=60dB


Ordering Information:

Connector   Types Cable   Types
L = LC C   = Patch Cord 2A1a   = Multi Mode Breakout Dia.7.0mm
F = FC G   = Pigtail 2B13   = Single Mode Breakout Dia.7.0mm
S = SC SM   = Single Mode 9/125um AR   = G657A Armored Cable
T = ST M5   = Multi Mode 50/125um V   = PVC Jacket
M = MU M6   = Multi Mode 62.5/125um Z   = LSZH Jacket
J = MTRJ M3   = Multi Mode OM3 50/125um 001   = 1 meter Length
E = E2000 SX   = Simplex 002   =  2 meters Length
D = DIN DX   = Duplex 300   = 300 meters Length
P = PC 9   = 900um Dia.meter LB   = Loopback
U = UPC 2   = 2.0mm Dia.meter RF   = Ribbon Fan-out
A = APC 3   = 3.0mm Dia.meter BO   = Bunch-out


Packing: 1 piece / polybag.

Customer's brand or LOGO available to stick on the polybag.

Or customed polybag available.

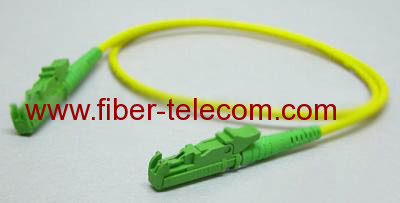

Image of E2000/APC patch cord

E2000/APC-E2000/APC Single mode Simplex Fiber Optic Patch Cord
