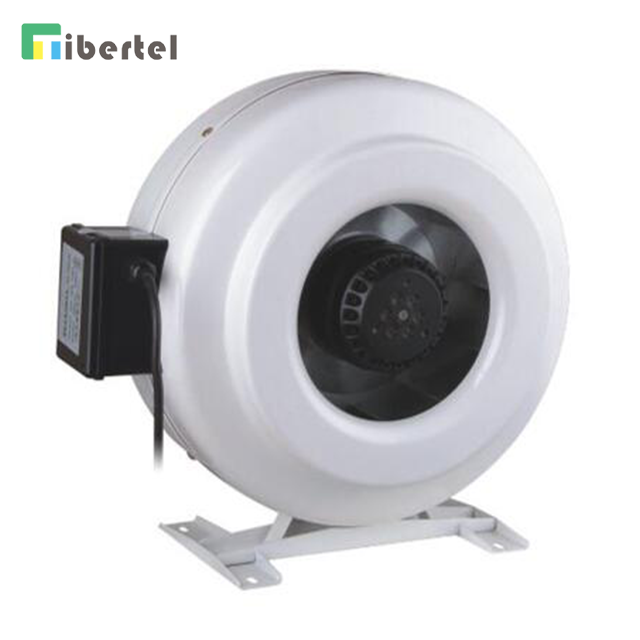

CDR Series External Rotor Coaxial Pipe Fan TJ06DRxxx

  • TJ06DRxxx

  • Fibertel

Availability:
Inquire Add to Basket
Performance Introduction
CDR Series centrifugal external rotor circular duct fan is a radial fan. The device is compact, capacity.
Large and easy to install. CDR fan operating at a low noise level, while the high pressure is not only
tolerated, but also to accommodate long pipe runs.
CDR series fan with moisture, allowing installation in wet or humid environments.
Security in the pipe system when installed, the fan should comply with IP44 level, they are used to transport
non-abrasive powder, soot and the like. Shell made of prefabricated galvanized steel.
CDR Series fan for hotels, senior clubs, supermarkets, storage rooms, toilets and other long-distance
transmission send and noise have required local.


Technical Parameters

Model


Rated

Voltage

(V)

Frequ
ency
(Hz)		Current（A） Input
Powr（W)  		Rated
Speed
 (r/min)  		volume
 (m3/h）

Pressu

re

 (pa)

Noise

db(A)

Capacitor  µ F

Approx.

Weight

kg

TJ06DR350220 50 0.40 85 2500 210 350 47 3 3
TJ06DR390 220 50 0.42 90 2450 275 390 47 3 3
TJ06DR400220 50 0.56 115 2550 370 400 52 4 5
TJ06DR420220 50 0.58 120 2500 590 420 52 4 5
TJ06DR550220 50 0.98 215 2450 800 550 53 6 6
TJ06DR670 220 50 1.05 225 2450 900 670 55 6 6
TJ06DR830 220 50 1.55 350 2350 1200 830 56 10 8


Previous:
Next:
CDR series external rotor coaxial pipe fan TJ06DRxxx ventilation fan vertical blade Industrial Ventilation Fan portable ventilation blower Movable Fan
RECOMMRND PRODUCTS
2'' Suction Type Hose TJ07WPH2A
2'' Suction Type Hose TJ07WPH2A

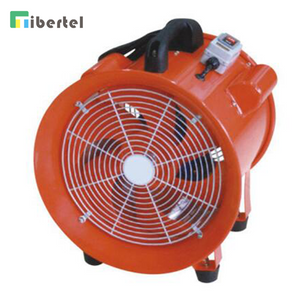

36V Portable Ventilator TJ06DPVxx
36V Portable Ventilator TJ06DPVxx
Pipeline Type Ventilator TJ06VPxxx
Pipeline Type Ventilator TJ06VPxxx
Model SF Axial Flow Fan TJ06DSxxx
Model SF Axial Flow Fan TJ06DSxxx
SF-B Type Oil Resistant Moisture-proof Axial Flow Fan TJ06DFBxxx
SF-B Type Oil Resistant Moisture-proof Axial Flow Fan TJ06DFBxxx
Stationary Type Ventilator TJ06VSxxx
Stationary Type Ventilator TJ06VSxxx
Wall Hanging Type Ventilator
Wall Hanging Type Ventilator

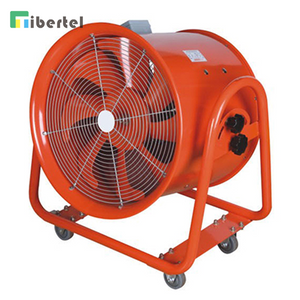

Hand-push Type Ventilator
Hand-push Type Ventilator
Ventilator Hoses TJ06DHxxx
Ventilator Hoses TJ06DHxxx

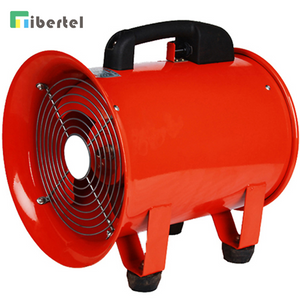

Non-spark Portable Ventilator TJ06D1xxx
