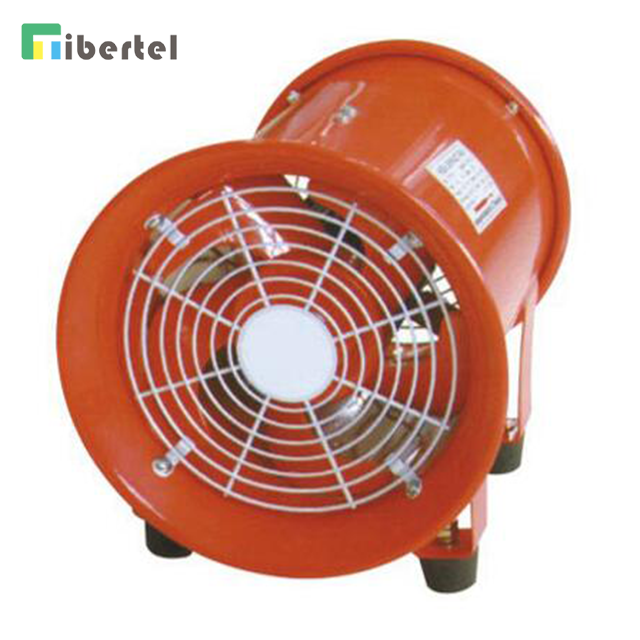

Features
*Saving energy.
*Strong wind power.
*convenient to more.
*Make low noise and light weight due to die-casting aluminum alloy.
*With good capacity, the reasonable structure and the strong suction.
Application
*It’s special manufactured for underground cable maintaince, shipping making.
*Blowing bad gas when welding shipbuilding, canning, bridge.
*Exhaust for fire-fighting, piping construction and in other violent working situation for ventilation.
Features
*Saving energy.
*Strong wind power.
*convenient to more.
*Make low noise and light weight due to die-casting aluminum alloy.
*With good capacity, the reasonable structure and the strong suction.
Application
*It’s special manufactured for underground cable maintaince, shipping making.
*Blowing bad gas when welding shipbuilding, canning, bridge.
*Exhaust for fire-fighting, piping construction and in other violent working situation for ventilation.
Technical Parameters
Model | Diameter (mm) | Voltage (v) | Frequency (Hz) | Speed (r/min) | Watts (w) | Capacity (m3/min) | Static (Pa) | Noise dB(A) |
TJ06VS08A | 200 | 110 | 50/60 | 2800/3300 | 180/230 | 25/30. | 245/295 | 61 |
TJ06VS08B | 200 | 220~240 | 50/60 | 2800/3300 | 180/230 | 25/30 | 245/295 | 61 |
TJ06VS10A | 250 | 110 | 50/60 | 2800/3300 | 300-350 | 45/55 | 295/350 | 66 |
TJ06VS10B | 250 | 220~240 | 50/60 | 2800/3300 | 300-350 | 45/55 | 295/350 | 66 |
TJ06VS12A | 300 | 110 | 50/60 | 2800/3300 | 500/550 | 65/77 | 385/450 | 69 |
TJ06VS12B | 300 | 220~240 | 50/60 | 2800/3300 | 500/550 | 65/77 | 385/450 | 69 |
TJ06VS16A | 400 | 110 | 50/60 | 2800/3300 | 1100 | 105/120 | 700/780 | 79 |
TJ06VS16B | 400 | 220~240 | 50/60 | 2800/3300 | 1100 | 105/120 | 700/780 | 79 |
TJ06VS16C | 400 | 110 | 50/60 | 1400/1720 | 550 | 80/95 | 300/360 | 68 |
TJ06VS16D | 400 | 220~240 | 50/60 | 1400/1720 | 550 | 80/95 | 300/360 | 68 |
TJ06VS20A | 500 | 110 | 50/60 | 1400/1720 | 1100 | 130/145 | 400/460 | 73 |
TJ06VS20B | 500 | 220~240 | 50/60 | 1400/1720 | 1100 | 130/145 | 400/460 | 73 |
Technical Parameters
Model | Diameter (mm) | Voltage (v) | Frequency (Hz) | Speed (r/min) | Watts (w) | Capacity (m3/min) | Static (Pa) | Noise dB(A) |
TJ06VS08A | 200 | 110 | 50/60 | 2800/3300 | 180/230 | 25/30. | 245/295 | 61 |
TJ06VS08B | 200 | 220~240 | 50/60 | 2800/3300 | 180/230 | 25/30 | 245/295 | 61 |
TJ06VS10A | 250 | 110 | 50/60 | 2800/3300 | 300-350 | 45/55 | 295/350 | 66 |
TJ06VS10B | 250 | 220~240 | 50/60 | 2800/3300 | 300-350 | 45/55 | 295/350 | 66 |
TJ06VS12A | 300 | 110 | 50/60 | 2800/3300 | 500/550 | 65/77 | 385/450 | 69 |
TJ06VS12B | 300 | 220~240 | 50/60 | 2800/3300 | 500/550 | 65/77 | 385/450 | 69 |
TJ06VS16A | 400 | 110 | 50/60 | 2800/3300 | 1100 | 105/120 | 700/780 | 79 |
TJ06VS16B | 400 | 220~240 | 50/60 | 2800/3300 | 1100 | 105/120 | 700/780 | 79 |
TJ06VS16C | 400 | 110 | 50/60 | 1400/1720 | 550 | 80/95 | 300/360 | 68 |
TJ06VS16D | 400 | 220~240 | 50/60 | 1400/1720 | 550 | 80/95 | 300/360 | 68 |
TJ06VS20A | 500 | 110 | 50/60 | 1400/1720 | 1100 | 130/145 | 400/460 | 73 |
TJ06VS20B | 500 | 220~240 | 50/60 | 1400/1720 | 1100 | 130/145 | 400/460 | 73 |
