8 Fiber SM Multi Color Fiber Optical Pigtails
Home » Products » FTTx Solutions » Fiber optic pigtail » 8 Fiber SM Multi Color Fiber Optical Pigtails

PRODUCTS

Share to:

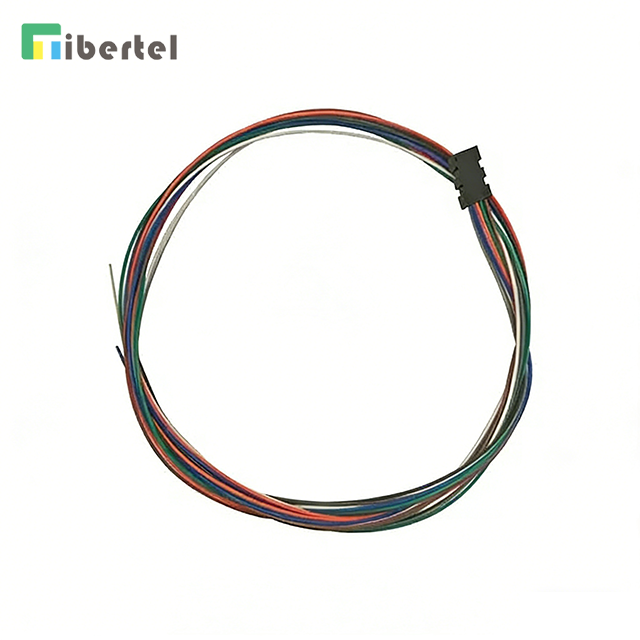

8 Fiber SM Multi Color Fiber Optical Pigtails

Availability:
Delivery Date:15-working daysBrand Name:T&J
Fiber Core:8 coresFiber type:SM
Ferrule polishing:PCInsertion Loss:<=0.2dB
Return Loss:=>50dBCable O.D.:0.9mm
Cable Length:0.5~10 metersCable Jacket:PVC or LSZH
Origin:China

T&J supply Single mode 8 Pack Multi Color Fiber Optic Pigtails with competitive price. We supply quality Single mode Fiber Optic Pigtails are 8 packs that are 3 meters long with 900um outter jacket.  Ideal for fusion splicing.
We also offer custom-made specification pigtails, please contact us for details.

Features of Single mode Fiber Optic Pigtails:
1) Superior qualified standard PC, APC, UPC, SPC polishing;
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
4) φ0.9mm, φ2.0mm, φ3.0mm cable optional;
5) Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
6) FC, SC, LC, MU, ST, MT-RJ, etc connector
7) Simplex and duplex connector available; 8) Good exchange ability and good durability;
9) Available in fiber bunch, ribbon fan-out, pigtail available;
10) Meets ISO9001, ROHS and Bell core GR 326-core standards;
11) Customized specifications are welcomed.

Applications of Single mode Fiber Optic Pigtails:
1) CATV, metro test equipment;
2) Telecommunication networks;
3) Local area networks (LAN);
4) Wide area networks (WAN);
5) Premise installations;
6) Data processing networks;
7) Video and military active device termination.
