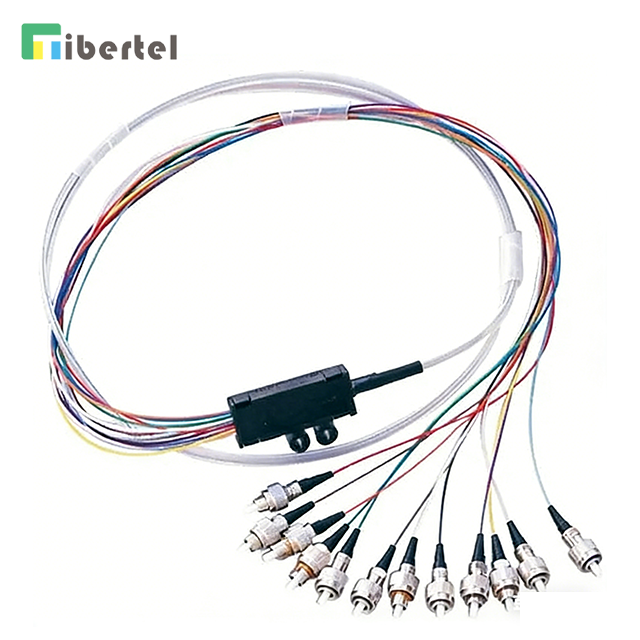

FC Single Mode Fan-out Fiber Optic Pigtail

Availability:
Delivery Date:15-working daysBrand Name:T&J
Connector type:FC Fan-outFiber Core:Simplex
Fiber type:SMFerrule polishing:PC
Insertion Loss:<=0.2dBReturn Loss:=>50dB
Cable O.D.:0.9mmCable Length:0.5~10 meters
Cable Jacket:PVC or LSZHOrigin:China

T&J fiber optic pigtails provide the highest level of connectivity for all your fiber interconnect applications.

Manufactored and tested to the tightest specifications. T&J patch cords meet Telcordia GR-326 requirements. Our precision zirconia ferrules and exvironmentally rugged connectors and cable assemblies ensure lasting, repeatable connections.


Applications:

• Ethernet, Data Communication LAN and WAN.

• Fast • High-speed Enterprise Serves.

• Multiplexors, Switches, and Routers.

• Optical Access and ATM Networks Equipment.

• Optical Transport and Telecommunications Switching Equipment


Features:

• Excellent Return Loss.

• Ultra Low Insertion Loss.

• Singlemode.

• Simplex.

Performance Specifications:

• FC.

• PC.

• Telcordia GR-326 Compliant.

• Cable OD. 0.9mm

• Cable Jacket: PVC or LSZH

• Fiber: Tight-buffer.


Technical Indication:

TypeInsertion LossReturn Loss
Multi Mode (PC/UPC)<=0.2dB >=35dB
Single Mode (PC/UPC)<=0.2dB >=50dB
Single Mode (APC)<=0.2dB >=60dB


Ordering Information:

Connector   TypesCable   Types
L = LCC   = Patch Cord2A1a   = Multi Mode Breakout Dia.7.0mm
F = FCG   = Pigtail2B13   = Single Mode Breakout Dia.7.0mm
S = SCSM   = Single Mode 9/125umAR   = G657A Armored Cable
T = STM5   = Multi Mode 50/125umV   = PVC Jacket
M = MUM6   = Multi Mode 62.5/125umZ   = LSZH Jacket
J = MTRJM3   = Multi Mode OM3 50/125um001   = 1 meter Length
E = E2000SX   = Simplex002   =  2 meters Length
D = DINDX   = Duplex300   = 300 meters Length
P = PC9   = 900um Dia.meterLB   = Loopback
U = UPC2   = 2.0mm Dia.meterRF   = Ribbon Fan-out
A = APC3   = 3.0mm Dia.meterBO   = Bunch-out
