SC/APC FTTH fast connector type A
Home » Products » FTTx Solutions » FTTH fast connector » SC/APC FTTH fast connector type A
Share to:

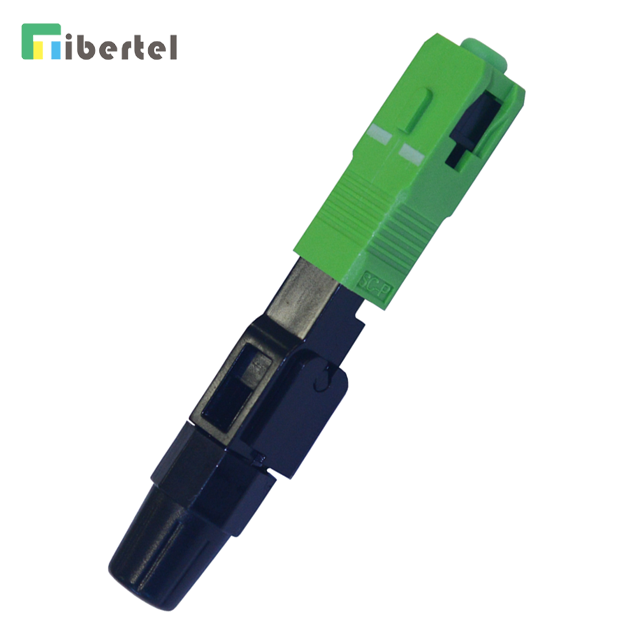

SC/APC FTTH fast connector type A

  • TJ01B1101
Delivery Date:7-working daysBrand Name:T&J
Connector type:SC/APC fast connector type AFiber core:simplex
Fiber type:SMMaterial of housing:plastic
Material of boot:plasticBoot color:Blue / Green
Ferrule:CeramicDimension:0.9mm, 2.0mm, 3.0mm
Origin:China

Description

Quick Assembly SC connector can provide quick and easy terminations of fibers in the field, and options are available for 900 micron and 250 micron. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens, with features of high installation quality, high success rate and high reliability.



Application:

Distribution frames

Maintenance or emergency restoration of fiber networks

FTTH Outlets

Patch panels



Features:

Factory-installed fiber stub

No epoxy or polishing required

Quick and easy fiber termination in the field

Eliminates cable excess length and pigtail splice storage

Cost effective



Specifications

Item(Connector)

Parameter

Fiber Type

SC/UPC

SC/APC

Polishing Type

UPC

APC

Color of housing

Blue

Green

Insertion Loss

<0.3dB

<0.3dB

Return Loss

≥45dB

≥60dB

Operation Temp

-40°C ~ 80°C

Connection Method

Push-On

Tensile strength (3.0mm)

>20N

>50N

Operation Time

1000times
