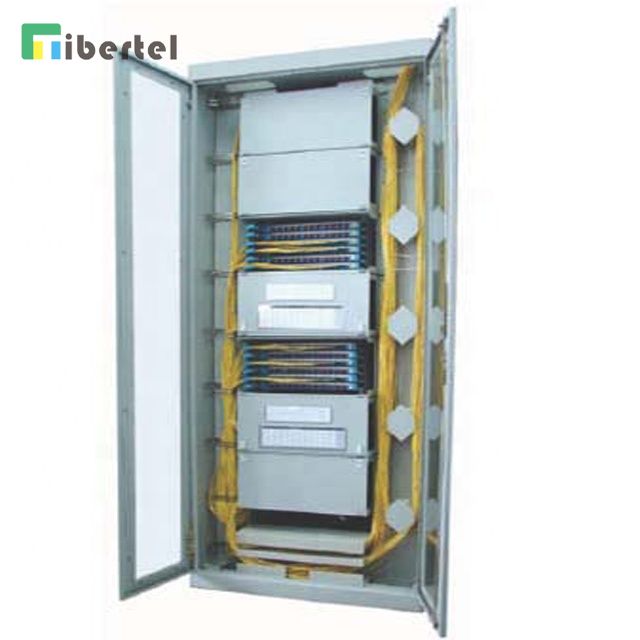

TJ01EBxxx
Item | Description |
Producst Name | Fibers Optical Distribution Frame Intdoor ODF |
Part No. | TJ01EBxxx |
Installation standard | 19” |
Material: | High quality Cold rolled steel with thickness of 1.2mm to 2.0mm |
Color | RAL7035, GY-09, Z44 or on request |
Front door | Tempered glass door, Metal door with or without hole |
Back door | Metal door with or without hole. Single door or Dual doors |
Surface treatment | Electrostatic spray treatment |
Structure | Assembled design, front operation |
Rack ground | The frame is electrically conductive and with a complete grounding system. |
Rack mounting | It can be installed side by side with a reasonable alignment channel |
Working temperature | -5℃ -+40℃ |
Storage temperature | -40℃+70℃ |
Humidity | ≤90%(+30℃) |
Atmospheric pressure | 70Kpa-106Kpa |
Electrical performance | Insulation resistance ≥1000MΩ 500V (Direct current) |
Dielectric strength | 3000V (DC) /1min no breakdown, no arcing phenomenon |
Part No. | Dimension | Capacity (core / fiber) |
TJ01EB012 | 485*260*45mm | 12 |
TJ01EB024 | 485*260*90mm | 24 |
TJ01EB036 | 485*260*133mm | 36 |
TJ01EB048 | 485*260*178mm | 48 |
TJ01EB072 | 485*260*223mm | 72 |
TJ01EB096 | 485*260*312mm | 96 |
TJ01EB144 | 485*260*400mm | 144 |
TJ01EC576 | 800*400*2000mm | 576 |
TJ01ED576 | 800*400*2200mm | 576 |
