TJ01E8xxx
| Availability: | |
|---|---|
Item | Description |

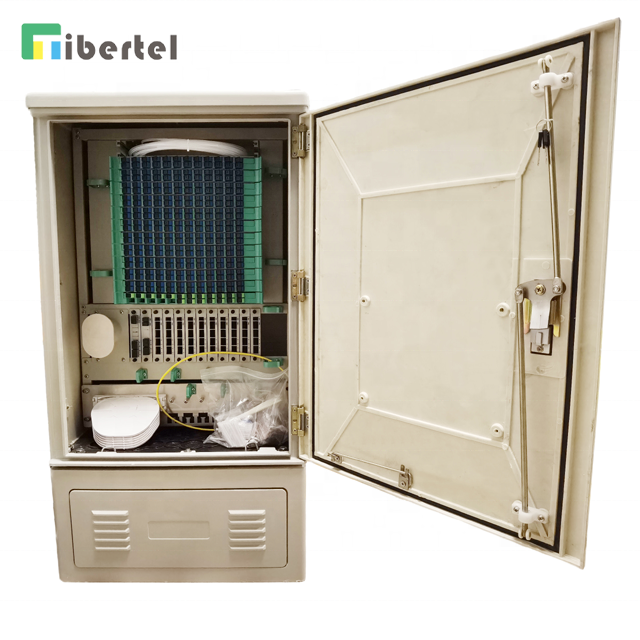

Product Name | Ftth Fiber Optic Outdoor Street Cabinet |
Part No. | TJ01E8xxx |
Max Capacity of Fiber Core | on Request |
Thickness of Material | 8mm |
Material of inside frames and accessories | Stainless Steel #304 or Cold Rolled Steel |
High voltage protective grounding and cabinet insulation resistance | 2000MΩ/500V(DC) |
Protection | IP65 |
Working temperature | -45℃ to +85℃ |
Part No. | Capacity | Dimension(W*D*H) mm | ||
TJ01E801A | 144 fibers | 660*320*1150 | ||
TJ01E802A | 288 fibers | 660*320*1450 | ||
TJ01E802H | 288 fibers | 650*200*1100 | ||
TJ01E803A | 576 fibers | 740*580*1450 | ||
TJ01E803B | 576 fibers | 900*640*1500 | ||
TJ01E803C | 576 fibers | 1270*330*1500 | ||
TJ01E804A | 1152fibers | 1270*660*1500 | ||
Item | Description |
Product Name | Ftth Fiber Optic Outdoor Street Cabinet |
Part No. | TJ01E8xxx |
Max Capacity of Fiber Core | on Request |
Thickness of Material | 8mm |
Material of inside frames and accessories | Stainless Steel #304 or Cold Rolled Steel |
High voltage protective grounding and cabinet insulation resistance | 2000MΩ/500V(DC) |
Protection | IP65 |
Working temperature | -45℃ to +85℃ |
Part No. | Capacity | Dimension(W*D*H) mm | ||
TJ01E801A | 144 fibers | 660*320*1150 | ||
TJ01E802A | 288 fibers | 660*320*1450 | ||
TJ01E802H | 288 fibers | 650*200*1100 | ||
TJ01E803A | 576 fibers | 740*580*1450 | ||
TJ01E803B | 576 fibers | 900*640*1500 | ||
TJ01E803C | 576 fibers | 1270*330*1500 | ||
TJ01E804A | 1152fibers | 1270*660*1500 | ||
