Fiber optic cross connection cabinet
Home » Products » FTTx Solutions » Fiber connection cabinet » Fiber optic cross connection cabinet
Share to:

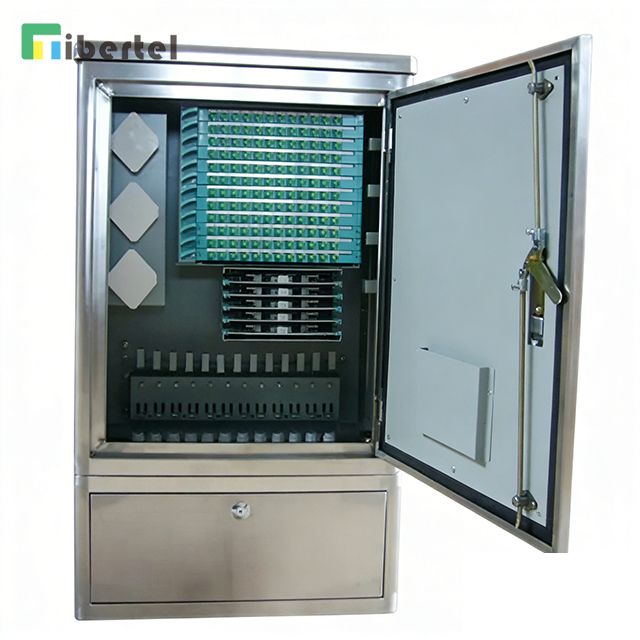

Fiber optic cross connection cabinet

  • TJ01E801A
Delivery Date:15-working daysBrand Name:T&J
Model No.:DC06BMax.Capacity:288 fibers
Size (mm):660 x 320 x 1450mmMaterial:Cold rolled steel or Stainless steel
Working temperature:-40 ~ +65Humidity:<= 95% (at +40 )
Pressure:70 ~ 106KpaApplication:Moistureproof/ Rain-proof / Dustproof / Security
Complaint:YD/T988-1998 standardOrigin:China

● The interface device used in connecting backbone cables and distributing cables.

● Realizing the obligation in node points, straight in, fiber distributing or adjusting between backbone cables and

● The body of the case is made of stainless steel, electrostatics plastic-spray surface, anti-corrosion.Suitable for

ground or aerial installation.

● The area for fixing ,splicing and wiring is classified clearly and easy for installation and checking the line.


Environment condition:

● Environmental temperature:-40℃~+65℃

● Relative humidity:≤95% (When the temperature is +40℃)

● Atmospheric pressure:70~106Kpa

● Damp-proof, rain-proof, dust-proof, burglar-proof is standard by YD/T988-1998


Ordering information:

Item No.DescriptionSize
    (L x W x H) mm
Max.Capacity
    (cores)
TJ01E801Afiber optic cross connection cabinet660 x 320 x 1150144
TJ01E802Afiber optic cross connection cabinet660 x 320 x 1450288
TJ01E803Afiber optic cross connection cabinet740 x 580 x 1450576
TJ01E803Bfiber optic cross   connection cabinet, 2-door900 x 640 x 1500576
TJ01E804Afiber optic cross   connection cabinet, 2-door1270 x 660 x 15001152
