Description

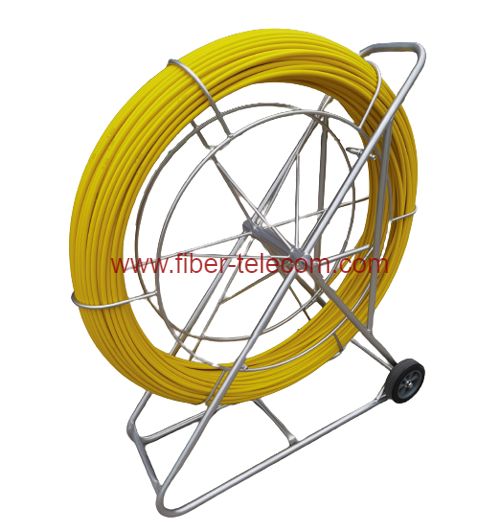

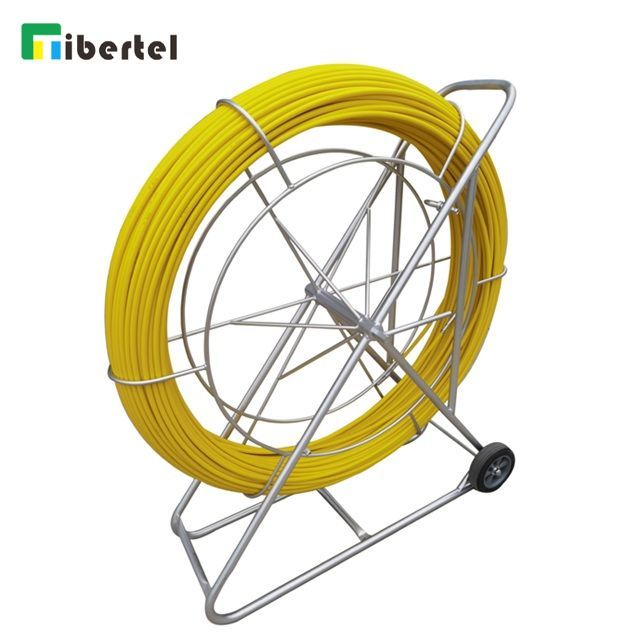

Fibertel Pro Super Frame Duct Rods is a new cobra upgraded in 2023 manufactured with Solid Round Galvanized Steel. It's an excellent tool for pulling drawrope and plastic sub tubes through underground PVC Duct. The Rods can be supplied with and without Frames (Cages). The smaller sizes 4-6 mm are normally supplied on Frames without Wheels and the larger sized Rods are supplied on Frames with Strong Wheels.
OEM enquiries are welcomed.
If you are interested in this new Cobra, please welcome to send us your enquiry to sales@fiber-telecom.com for more information.
Features:
1. High tensile strength and strong bending performance, can shuttle freely in narrow ducts.
2. Equipped with anti-rust guide tips.
3. Strong anti-aging performance.
4. Simple maintenance.
5. Equipped with movable portable bracket, easy to move.
6. High quality, long lifetime.
Specifications：
| Rods diameter (mm) | Φ4mm, 4.5mm, 6mm, 8mm, 9mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 18mm |
| Length of rods (mtr) | 50~500 |
| Linear density (g/m) | 24~350 |
| Min. bending radius (mm) | 5~32 |
| Tensile force (Kn) | 2~30 |
| Material of inner core | FRP glassfiber (Fibertel Standard Flexible and Fibertel Super Flexible) |
| Material of outer jacket | PP |
| Color of outer jacket | Yellow, orange, blue, red, green, or customized available |
| Material of bracket | Galvanized tube or Chromeplated |
| Material of guide tips | Gavanlnized iron or Copper |
| Working temperature | -10℃~+50℃ |
