TJ07RCxxx
Fibertel
Description

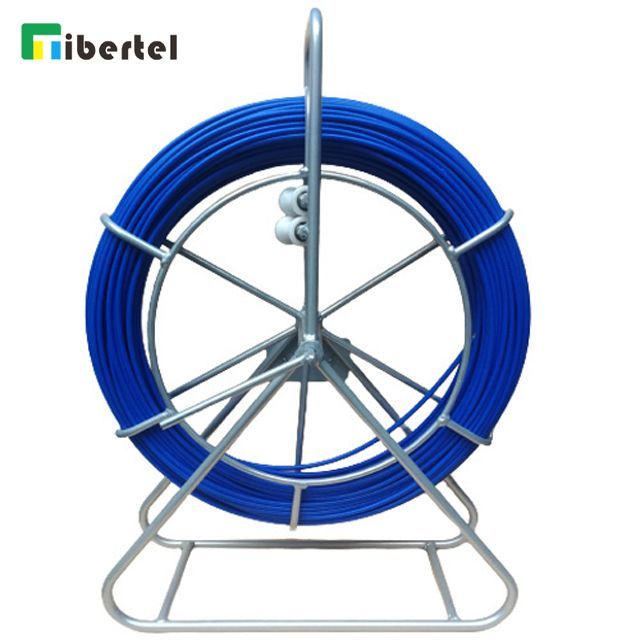

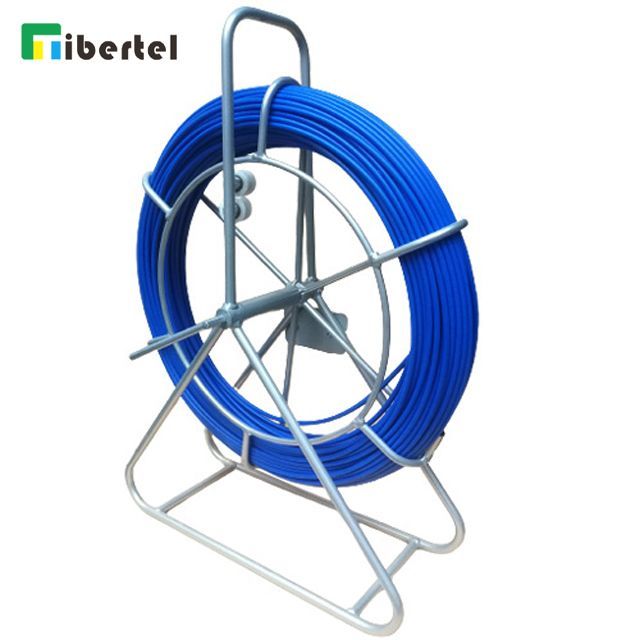

Fibretel's Rods Duct Continuous are excellent tools for pulling drawrope and plastic sub tubes through underground Pvc Duct. The Rods can be supplied with and without Frames (Cages). The smaller sizes 4-6 mm are normally supplied on Frames without Wheels and the larger sized Rods are supplied on Frames with
Strong Wheels.
OEM enquiries are welcomed.
Features:
1. High tensile strength and strong bending performance, can shuttle freely in narrow ducts.
2. Equipped with anti-rust guide tips.
3. Strong anti-aging performance.
4. Simple maintenance.
5. Equipped with movable portable bracket, easy to move.
6. High quality, long lifetime.
Specifications：
| Rods diameter (mm) | Φ4mm, 4.5mm, 6mm, 8mm, 9mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 18mm |
| Length of rods (mtr) | 50~500 |
| Linear density (g/m) | 24~350 |
| Min. bending radius (mm) | 5~32 |
| Tensile force (Kn) | 2~30 |
| Material of inner core | FRP glassfiber |
| Material of outer jacket | PP |
| Color of outer jacket | Yellow, orange, blue, red, green, or customized available |
| Material of bracket | Galvanized tube or Chromeplated |
| Material of guide tips | Gavanlnized iron or Copper |
| Working temperature | -10℃~+50℃ |
