F/UTP 4Pairs Cable Category5E PVC Sheath
Home » Products » Cabling Solutions » LAN cable » F/UTP 4Pairs Cable Category5E PVC Sheath
Share to:

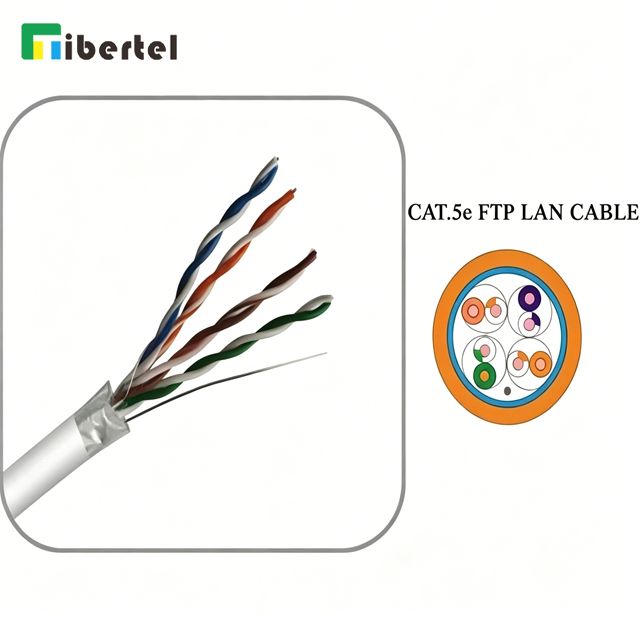

F/UTP 4Pairs Cable Category5E PVC Sheath

Delivery Date:35-working daysApplication:Networking
Type:Cat 5eBrand Name:T&J
Weight:pendingNumber of Conductors:4pairs
Nominal Outer Diameter:6.2±0.4mmOperating Temperature:-30C~+50C
Cable type:CAT.5e FTPConductor:Bare solid copper conductor
Nom.O.D.(mm):0.5External O.D.:6.2±0.4mm
Outer Jacket material:PVC or LSZHPacking length:305meters or on request
Rated temperature:60C, 75C, 90CReference Standard:UL444,UL1581 ,UL1666
Test Standard:ISO/IEC 61156-5; EN 50288-4 ,YD/T1019Origin:China

Category: F/UTP CAT5e-4P-PVC

Test Standard: ISO/IEC11801, TIA/EIA-568-C.2, YD/T1019-2001

Conductor:

         Material: oxygen free copper

         Nom.O.D.(mm): 0.500  (up +0.005;  down -0.005)

Insulation:

       Material: HDPE

         Diameter: 1.00+-0.03mm

Screening Material: Aluminum Foil

Sheath:

          Thinkness: 0.55+-0.05mm

          External O.D.: 6.2+-0.4mm

          Surface: Clean, Frap, Satiation

          Material: PVC(complies RoHS)

          Color: According to the requires

Surface Printing:

           Leter height: 3.0+-0.3mm

          Color: Black

          Print error & space: >=0.5%, 1M

Core Color:

            1 White -Blue/Blue

            2 White -Orange/Orange

            3 White -Green/Green

            4 White -Brown/Brown

Packing: Carton

Packing length: 305M /reel

Rip-cord: Yes

Drain Wire: yes

Sheath Physical Propeties:


       Before Aging Tensile Strength (Mpa) ≥13.5

       Elongation(%) ≥150

       Aging Period( (℃×hrs) 100℃×24h×7d

       After Aging Tensile Strength(Mpa) ≥12.5

       Elongation(%) ≥125

       Cold bend(20±2℃× 4h ) 8×Cable O.D., No visible cracks

Electrical Characteristics(20℃):

       1.0100.0MHz Impedance(Ω) 100±15

       1.0100.0MHz Delay Shew (ns/100m) ≤45

       unbalancedtoground capacitance (pf/100m) max 330

       DC Resistance (Ω/100m) max 9.5

       DC Conductor Resistance Unbalance (%)max5.0


Note:The fire retardant of the outer sheath should be comply with national standard
