Description:

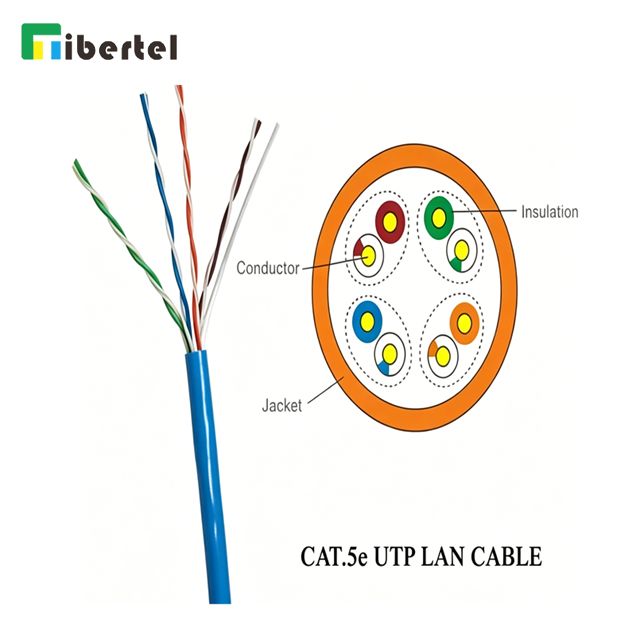

A multipair (usually 4 pair) high performance cable that consists of twisted pair conductors, used mainly for data transmission.
Category 5E is recommended for all new installations, supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet).
| Standards: | ISO/IEC11801 | TIA/EIA 568B |
|
|
|
|
| Conductor: | Solid bare copper, AWG24(0.5mm) (finished conductor size will be 0.493-0.498mm) |
| Nsulation: | HDPE (High Density Polyethylene) |
| Jacket: | PVC |
|
|
|
|
|
|
| Thickness: | 0.5mm |
|
|
|
|
|
|
|
| Color: | Grey or as required |
|
|
|
|
|
| Black ink printing: | E220470 (UL) CM 4PR 24AWG UTP CAT5e (xx) PEARL 6102 TIA/EIA 568B + meter marking or as required. |
| Rated temperature: | -60℃~+70℃ |
|
|
|
|
|
|
| Weight: | 28.50kg/km |
|
|
|
|
|
|
| Packing: | 305m/box |
|
|
|
|
|
|
| Electrical characteristics: |
|
|
|
|
|
| Frequency | Impedance | RL | Attenuation | Next Worst Pair | Next Power Sum | ELFEXT | ELFEXT | Nominal |
| MHz | ohm | dB | dB/100m | dB | dB | Worst Pair dB | Power Sun dB | velocity Propagation |
| 0.772 | 100+15 | 19.4 | 1.8 | 67 | 64 | 66 | 63 | 0.65 |
| 1 | 20 | 2 | 65.3 | 62.3 | 63.8 | 60.8 |
| 4 | 23 | 4.1 | 56.3 | 53.3 | 51.7 | 48.7 |
| 8 | 24.5 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 |
| 10 | 25 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 |
| 16 | 25 | 8.2 | 47.3 | 44.3 | 39.7 | 36.7 |
| 20 | 25 | 9.3 | 45.8 | 42.8 | 37.7 | 34.7 |
| 25 | 24.3 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 |
| 31.25 | 23.6 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 |
| 62.5 | 21.5 | 17 | 38.4 | 35.4 | 27.8 | 24.8 |
| 100 | 20.1 | 22 | 35.3 | 32.3 | 23.8 | 20.8 |
