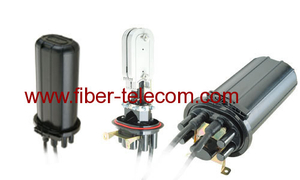

Vertical type Optical Fiber Splice Enclosure

  • TJ01E1213
Delivery Date:15-working daysBrand Name:T&J
Model:OFC-D013 / TJ01E1213Application:Aerial, Underground duct and hand-holes
Sealingstructure:Mechanical sealingDimention:dia.178x288mm
Weight (excluding outside box):1800g -1910gCable ports:4
Max. capacity:48 bunchy fiberDiameter of fiber cable:Φ8mm ~ Φ16 mm
Compliant:RoHSOrigin:China

1. Scope of application

This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.



The scope of application is: aerial, underground, pipeline, hand-holes. The ambient temperature ranges from -40℃ to 65℃.



2. Basic structure and configuration

2.1 Dimension and capacity

Outside dimension (Height x Diameter)288mm×178mm
Weight (excluding outside box)1800g—1910g
Number of inlet/outlet ports4 pieces
Diameter of fiber cableΦ8mm~Φ16 mm
Capacity of FOSCBunchy: 4-48 (cores)

2.2 Main components

No.Name of componentsQuantityUsageRemarks
1FOSC cover1 piece

Protecting fiber cable splices in whole

Height x Diameter

208mm x 132mm

2Fiber optic splice tray (FOST)

Max. 4 trays (bunchy)

Fixing heat shrinkable protective sleeve and holding fibers

Suitable for: Bunchy:4,6,8,12,(cores)

3Fiber holding tray

1 pcs

Holding fibers with protective coat


4Base1setFixing internal and external structure
5Plastic hoop1 set

Fixing between FOSC cover and base


6Seal fitting1 piece

Sealing between FOSC cover and base


7

Pressure testing valve

1 setAfter inject air, it is used for  pressure testing and sealing testingConfiguration as per requirement
8

Earthing deriving device

1 setDeriving metal parts of fiber cables in FOSC for earthing connectionConfiguration as per requirement



2.3 Main accessories and special tools

No.Name of accessoriesQuantityUsageRemarks
1

Heat shrinkable protective sleeve


Protecting fiber splices

Configuration as per capacity

2Nylon tie

Fixing fiber with protective coat

Configuration as per capacity

3Earthing wire1 piecePutting through between earthing devices

To put through as per actual requirement

4Abrasive cloth1 pieceScratching fiber cables
5Labeling paper1 pieceLabeling fibers
6Special wrench2 piecesInstalling and tightening nut of reinforced core and nut (plastic) of inlet/outlet tube
7Measuring paper1 pieceTo measure perimeter, of which its diameter is enlarged with seal tapeTo measure perimeter with the corresponding measuring paper
8Seal tape1 ring

Enlarging diameter of fiber  cable which fits in with gasket ring.

Configuration as per specification
9Insulation tape1 ring

Enlarging diameter of fiber  cable for easy fixing


10Metal hoop1 setFor wall mounting and pole hugging
11

Buffer tube



decided by customers

Hitched to fibers and fixed with FOST, managing buffer.Configuration as per requirement
12Desiccant

1 bag

Put into FOSC before sealing for desiccating air
