The fiber optic adaptor kits offer an ideal product for application requiring cable-to-cable connections. It can be in standard and hybrid type for most popular connectors including FC, SC, LC, ST, MU, MTRJ, E2000, DIN and MPO. An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
Hybrid fiber optic adapters offer a solution for hybrid applications where the two different kinds of fiber connectors or cable assemblies need to be linked with each other.
Item | Description |

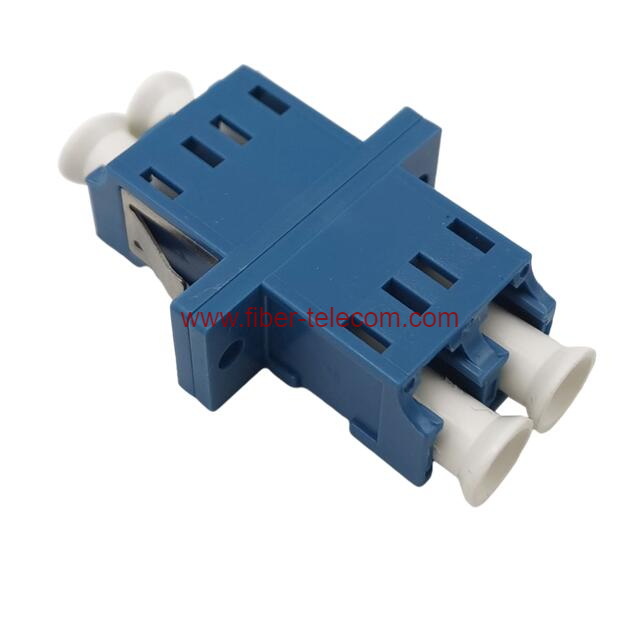

Product Name | LC/ SM Single Mode Fiber Optic Adaptor Duplex |
Connector Type | LC |
Part No. | TJ01B322B |
Fiber Type | Single Mode |
Cable Diameter | 0.9/2.0/3.0mm |
Insertion loss | ≤0.2dB |
Return Loss | ≥45dB |
Ferrule Polishing | PC/UPC |
Color | Blue |
Operating Temperature | -40~+85℃ |
