TJ01B318G
Fibertel
Parameters:
• Insertion Loss ≤ 0.2dB
• Mating Durability (1000 cycles): ≤0.2dB
• Working Temperature: -40℃～+85℃
• SM (blue), MM (Grey), APC (green)
• Simplex and Duplex and Quad
• Plastic housing and Metal housing
Applications:
• Fiber telecommunication system
• Optical fiber sensor
• Optical fiber CATV
• Test instrument
• Accurate mechanical dimensions
• LANs
• Data processing networks
• ODFs
Item | Description |

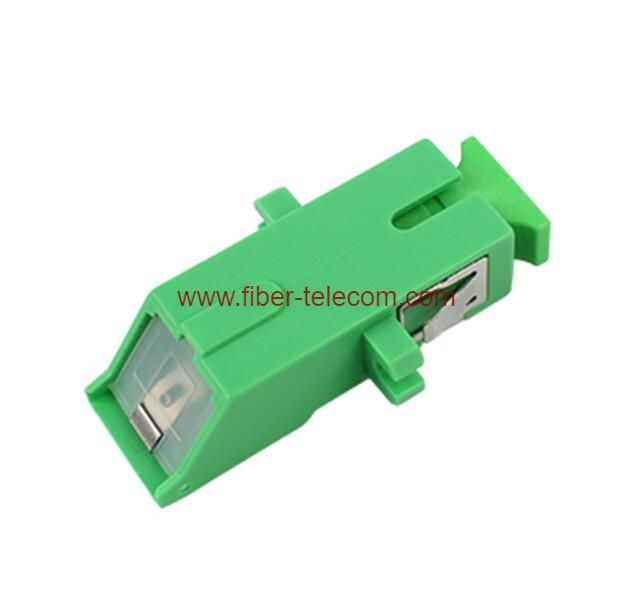

Product Name | SC Fiber Optic Adaptor Simplex |
Connector Type | SC |
Part No. | TJ01B318G |
Fiber Type | Multi Mode or Single Mode |
Insertion loss | ≤0.2dB |
Return Loss | ≥45dB |
Ferrule Polisging | APC |
Color | Green |
Operating Temperature | -40~+85℃ |
