Packing: | 1 set /ctn | Delivery Date: | 5 days |
---|---|---|---|
Brand Name: | T&J | Model: | TJ3307B |
Wavelength(nm): | 850/1300 (50/125 or 62.5/125) | Return Loss measurement Range: | 0 ~ 75dB |
Calibrated wavelength: | 850/1300 | Output Stability of laser source: | 0.05dB(1 hour@250C) |
Measurement accuracy: | 0.25dB | Linearity(dB): | 0.05dB |
Communication Port: | USB | Dimension: | 300X260X120mm |
Weight (kg): | 3.11 |
Packing: | 1 set /ctn | Delivery Date: | 5 days |
---|---|---|---|
Brand Name: | T&J | Model: | TJ3307B |
Wavelength(nm): | 850/1300 (50/125 or 62.5/125) | Return Loss measurement Range: | 0 ~ 75dB |
Calibrated wavelength: | 850/1300 | Output Stability of laser source: | 0.05dB(1 hour@250C) |
Measurement accuracy: | 0.25dB | Linearity(dB): | 0.05dB |
Communication Port: | USB | Dimension: | 300X260X120mm |
Weight (kg): | 3.11 |

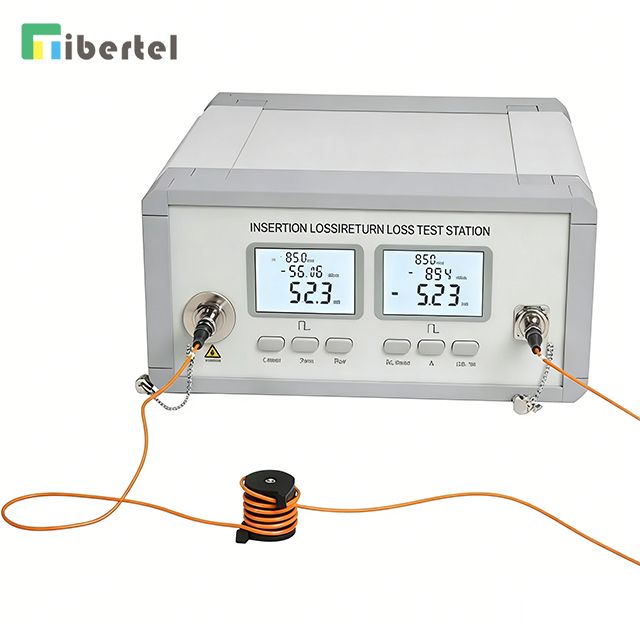

TJ3307B Insertion Loss and Return Loss Test Station is for Multi-mode fiber testing, a high performance loss test station that is designed specially for Optical Passive Components Test and Lab Test.
Model | TJ3307B |
Optical Return Loss Test | |
Wavelength(nm) | 850/1300 (50/125 or 62.5/125) |
Optical Connector | FC/APC |
Return Loss measurement Range(dB) | 0 ~ 75 |
Calibrated wavelength(nm) | 850/1300 |
Output Stability of laser source(dB) | 0.05/hour@25℃ |
Measurement accuracy(dB) | 0.25dB |
Linearity(dB) | 0.05dB |
Optical Insertion Loss Test | |
Detector | InGaAs |
Wavelength Range | 800~1700nm |
Calibrated wavelength | 850/1300/1310/1550nm |
Measurement range(dBm) | -80~+3 |
Optic Connector(Power Meter) | FC/SC/ST,2.5mm Universal /1.25mm adaptors |
Uncertainty(dB) | 0.25 |
Linearity(dB) | 0.05 |
Display modes | Linearity and non-linearity |
Resolution | Non-linear 0.01dB ;Linear:0.001nw/µW/mW |
Measurement accuracy | 0.01dB |
Other Specification | |
Communication Port | USB |
Power Supply | AC 170-260V,50~200Hz |
Operation Temperature(℃) | -5~+55 |
Storage Temperature(℃) | -25~+70 |
Dimensions(mm) | 280X260X120 |
Weight(kg) | 3.11 |
Standard Packages
MODEL | INCLUDES |
JT3307B | JT3307B Main Body, Power Supply Cable, FC Adapter, SC Adapter, ST Adapter, 25mm Universal, 1.25mm Universal Adapter, User Manual, FC/APC-FC/APC reference patch cord, Scrambler, Extinction Module, Cleaning Cotton Stick, Fuse, USB Cable, PC software, Foot Pedal |
