| Delivery Date: | 7-working days | Brand Name: | T&J |
|---|---|---|---|

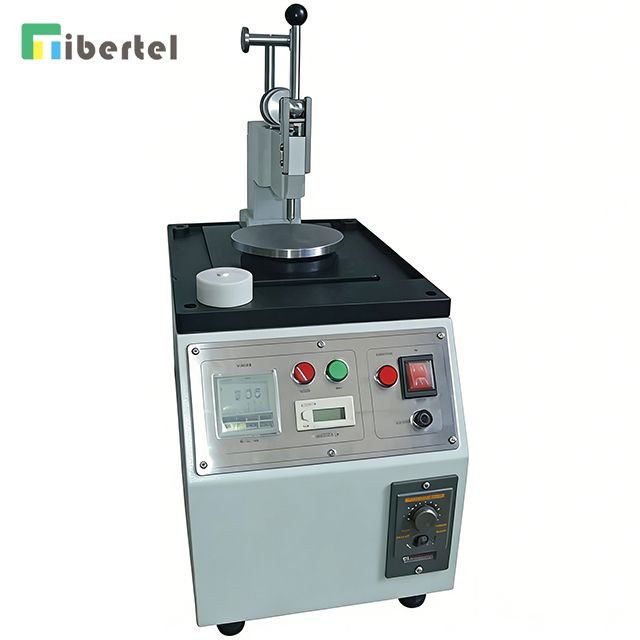

| Model: | CX-12 | Type: | Central Pressurized Polishing Machine |
| Physical dimensions: | 220*340*480mm | Weight approximately: | 21 kg |
| Operating temperature: | 0° to 40 °C (50°to 104°F) | Relative humidity: | 15% to 85% |
| End curve radius: | 10 to 25 mm (0.394 to 0.984 inch) | Storing temperature: | -25°to 65°C (8°to149°F) |
| Noise: | 60 dB (A) or less | Return loss: | 40 dB or more |
| Delivery Date: | 7-working days | Brand Name: | T&J |
|---|---|---|---|
| Model: | CX-12 | Type: | Central Pressurized Polishing Machine |
| Physical dimensions: | 220*340*480mm | Weight approximately: | 21 kg |
| Operating temperature: | 0° to 40 °C (50°to 104°F) | Relative humidity: | 15% to 85% |
| End curve radius: | 10 to 25 mm (0.394 to 0.984 inch) | Storing temperature: | -25°to 65°C (8°to149°F) |
| Noise: | 60 dB (A) or less | Return loss: | 40 dB or more |
Grinding 50 second
Polishing 50 second
Finishing 40 second
Polishing process 4 steps (excluding adhesive removal)
Return loss 40 dB or more
End curve radius 10 to 25 mm (0.394 to 0.984 inch)
End curve offset 50 um (0.00197 inch) or less
Fiber under-cut 0.1um or less
Noise 60 dB (A) or less
Feature:
Can process most kinds of standard fiber optic connectors,such as FC/UPC, SC/UPC, ST/UPC, LC/UPC, MU/UPC,FC/APC, SC/APC, MTRJ, E2000 etc.
Convenience for adjusting pressure, unloading and replacing jigs
Gear transmission
Excellent connector end face polishing quality,the percentage of products sent back for repair is very low
Save material and low cost for grinding
Easy to use and stable
Display grinding speed which can be adjusted at any time
Convenience for speed adjustment
Can polishing other similar products
General specifications:
Power supply | 220/240 VAC, 50/60 Hz |
Power consumption | 55 W |
Operating temperature | 0° to 40 °C (50°to 104°F) (non condensing)
|
Physical dimensions | 220 (W) 340 (D) 480 (H) mm (with fiber holder at the lowest position) |
Weight approximately | 21 kg |
Timer | 0 through 99 min. 99 sec. (Unit: second) |
Operating environmental
specifications
Operating temperature | 0° to 40 °C (50°to 104°F) (non condensing)
|
Relative humidity | 15% to 85% |
Vibration | operating: 0.25 G 5 to 100 Hz 10min. powered-off: 0.50 G 5 to 100 Hz 20min |
Acceptable impact | 50 mm (1.97 inch) drop (one side) |
Storing environmental
specifications
Storing temperature -25°to 65°C (8°to149°F) (no condensing)
Relative humidity 15% to 85%
Options for Polishing jigs:
No. | Model | Description | Remark |
1 | FC-PC-20 | FC/PC connector style jig, 20 positions | φ2.50mm, 20 positions |
2 | ST-PC-20 | ST/PC connector style jig, 20 positions | φ2.50mm, 20 positions |
3 | SC-PC-20 | SC/PC connector style jig, 20 positions | φ2.50mm, 20 positions |
4 | FC-PC-24 | FC/PC connector style jig, 24 positions | φ2.50mm, 24 positions |
5 | ST-PC-24 | ST/PC connector style jig, 24 positions | φ2.50mm, 24 positions |
6 | SC-PC-24 | SC/PC connector style jig, 24 positions | φ2.50mm, 24 positions |
7 | MU-PC-24 | MU/PC connector style jig, 24 positions | φ1.25mm, 24 positions |
8 | LC-PC-24 | LC/PC connector style jig, 24 positions | φ1.25mm, 24 positions |
9 | MU-PC-40 | MU/PC connector style jig, 40 positions | φ1.25mm, 40 positions |
10 | LC-PC-40 | LC/PC connector style jig, 40 positions | φ1.25mm, 40 positions |
11 | FC-APC-18 | FC/APC connector style jig, 18 positions | φ2.50mm, 18 positions |
12 | SC-APC-18 | SC/APC connector style jig, 18 positions | φ2.50mm, 18 positions |
13 | MU-APC-18 | MU/APC connector style jig, 18 positions | φ1.25mm, 18 positions |
14 | LC-APC-18 | LC/APC connector style jig, 18 positions | φ1.25mm, 18 position |
15 | MTRJ-18 | MTRJ connector style jig, 18 positions | 18 positions |
16 | MPO-18 | MPO connector style jig, 18 positions | 18 positions |
Grinding 50 second
Polishing 50 second
Finishing 40 second
Polishing process 4 steps (excluding adhesive removal)
Return loss 40 dB or more
End curve radius 10 to 25 mm (0.394 to 0.984 inch)
End curve offset 50 um (0.00197 inch) or less
Fiber under-cut 0.1um or less
Noise 60 dB (A) or less
Feature:
Can process most kinds of standard fiber optic connectors,such as FC/UPC, SC/UPC, ST/UPC, LC/UPC, MU/UPC,FC/APC, SC/APC, MTRJ, E2000 etc.
Convenience for adjusting pressure, unloading and replacing jigs
Gear transmission
Excellent connector end face polishing quality,the percentage of products sent back for repair is very low
Save material and low cost for grinding
Easy to use and stable
Display grinding speed which can be adjusted at any time
Convenience for speed adjustment
Can polishing other similar products
General specifications:
Power supply | 220/240 VAC, 50/60 Hz |
Power consumption | 55 W |
Operating temperature | 0° to 40 °C (50°to 104°F) (non condensing)
|
Physical dimensions | 220 (W) 340 (D) 480 (H) mm (with fiber holder at the lowest position) |
Weight approximately | 21 kg |
Timer | 0 through 99 min. 99 sec. (Unit: second) |
Operating environmental
specifications
Operating temperature | 0° to 40 °C (50°to 104°F) (non condensing)
|
Relative humidity | 15% to 85% |
Vibration | operating: 0.25 G 5 to 100 Hz 10min. powered-off: 0.50 G 5 to 100 Hz 20min |
Acceptable impact | 50 mm (1.97 inch) drop (one side) |
Storing environmental
specifications
Storing temperature -25°to 65°C (8°to149°F) (no condensing)
Relative humidity 15% to 85%
Options for Polishing jigs:
No. | Model | Description | Remark |
1 | FC-PC-20 | FC/PC connector style jig, 20 positions | φ2.50mm, 20 positions |
2 | ST-PC-20 | ST/PC connector style jig, 20 positions | φ2.50mm, 20 positions |
3 | SC-PC-20 | SC/PC connector style jig, 20 positions | φ2.50mm, 20 positions |
4 | FC-PC-24 | FC/PC connector style jig, 24 positions | φ2.50mm, 24 positions |
5 | ST-PC-24 | ST/PC connector style jig, 24 positions | φ2.50mm, 24 positions |
6 | SC-PC-24 | SC/PC connector style jig, 24 positions | φ2.50mm, 24 positions |
7 | MU-PC-24 | MU/PC connector style jig, 24 positions | φ1.25mm, 24 positions |
8 | LC-PC-24 | LC/PC connector style jig, 24 positions | φ1.25mm, 24 positions |
9 | MU-PC-40 | MU/PC connector style jig, 40 positions | φ1.25mm, 40 positions |
10 | LC-PC-40 | LC/PC connector style jig, 40 positions | φ1.25mm, 40 positions |
11 | FC-APC-18 | FC/APC connector style jig, 18 positions | φ2.50mm, 18 positions |
12 | SC-APC-18 | SC/APC connector style jig, 18 positions | φ2.50mm, 18 positions |
13 | MU-APC-18 | MU/APC connector style jig, 18 positions | φ1.25mm, 18 positions |
14 | LC-APC-18 | LC/APC connector style jig, 18 positions | φ1.25mm, 18 position |
15 | MTRJ-18 | MTRJ connector style jig, 18 positions | 18 positions |
16 | MPO-18 | MPO connector style jig, 18 positions | 18 positions |
