LC SM Simplex loopback
Home » Products » FTTx Solutions » Fiber optic loopback » LC SM Simplex loopback
Share to:

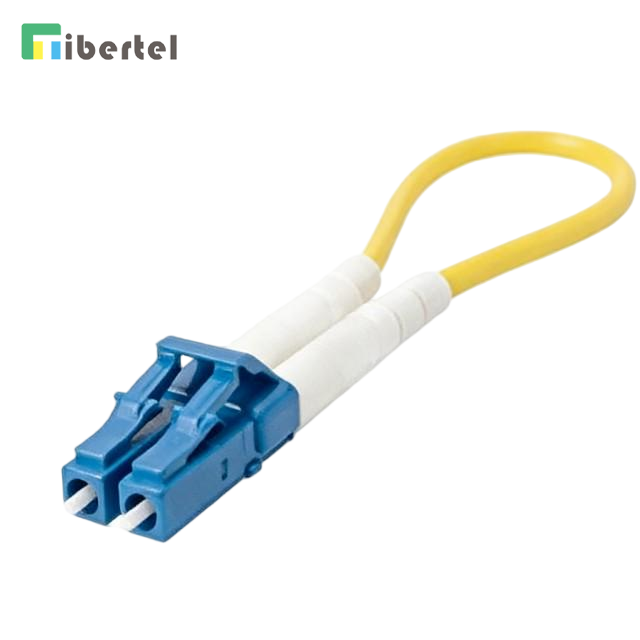

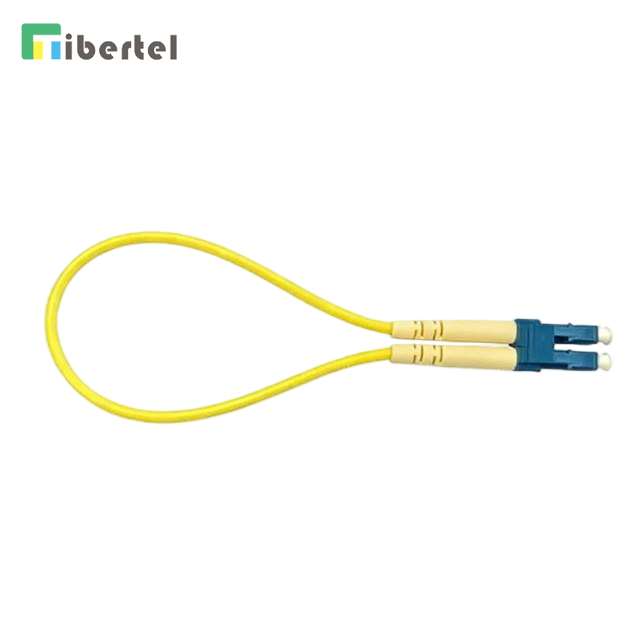

LC SM Simplex loopback

Delivery Date: 7 days Brand Name: T&J
Connector type: LC Fiber type: SM
Fiber count: Simplex Insertion Loss: ≤ 0.1dB
Return Loss: ≥ 50dB (PC), ≥ 60dB (APC) Mating Durability(500 cycles): ≤0.2dB
Boot size:: 0.9mm, 2.0mm, 3.0mm Origin: China
Color: SM(blue), MM(beige), APC(green) Working Temperature: -40℃ ~ +85℃

LC SM Simplex loopback

LC SM Simplex loopback

Description:

Fiber Optic Loopbacks is designed to provide a media of return patch for a fiber optic signal; typically it is used for fiber testing applications or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem.

Similar as patch cords, fiber optic loopbacks can be with various jacket types and cable diameters, and they can be with different terminations and length.

The common fiber optic loopbacks types are: SC fiber optic loopbacks, FC fiber optic loopbacks, LC fiber optic loopbacks, MT-RJ fiber optic loopbacks.



Parameters:

• Insertion Loss ≤ 0.1dB

• Return Loss ≥ 50dB (PC)

• Return Loss ≥ 60dB (APC)

• Mating Durability(500 cycles): ≤0.2dB

• Working Temperature: -40℃~+85℃

• SM(blue), MM(beige), APC(green)

• Simplex

• Boot size: 0.9mm, 2.0mm, 3.0mm



Applications:

• Gigabit Ethernet, Video, Multimedia

• CATV, LANs, WANs

• Premise installations, Metro

• Data processing networks

• Industrial, medical & military

• Test equipments and telecommunication networks


LC SM Simplex loopback

LC SM Simplex loopback


LC MM Simplex loopback


LC Loopback
