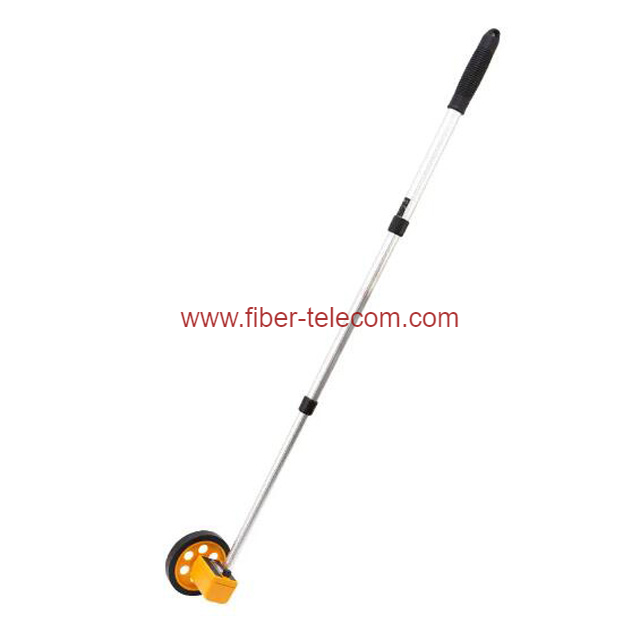

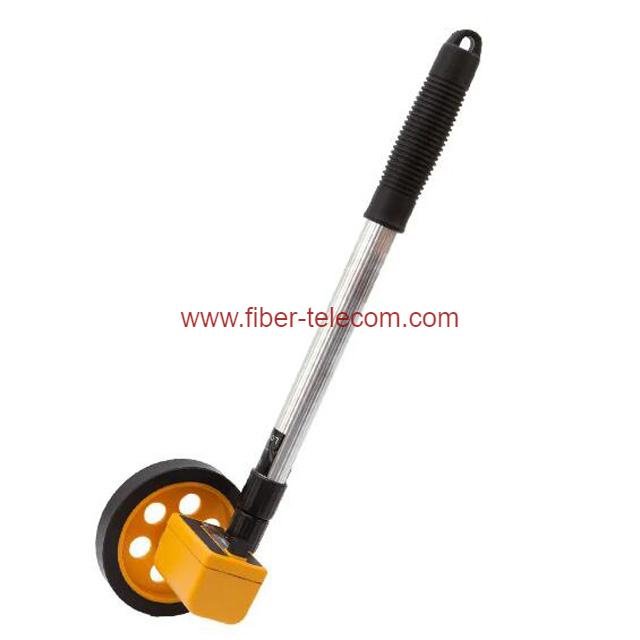

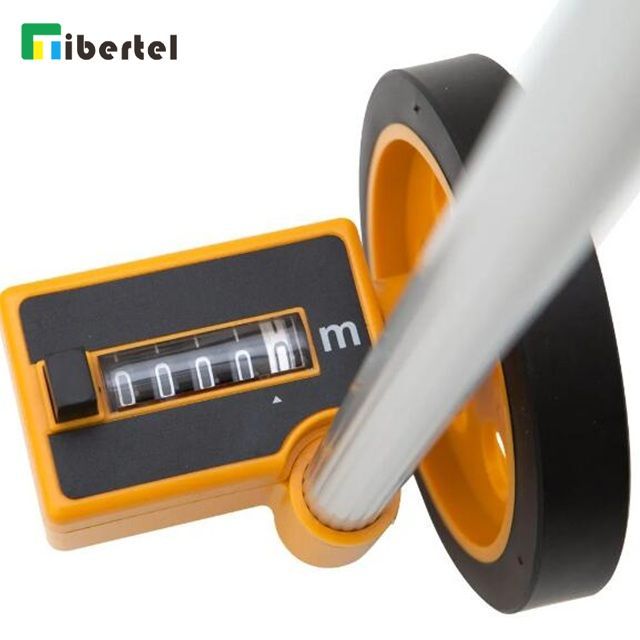

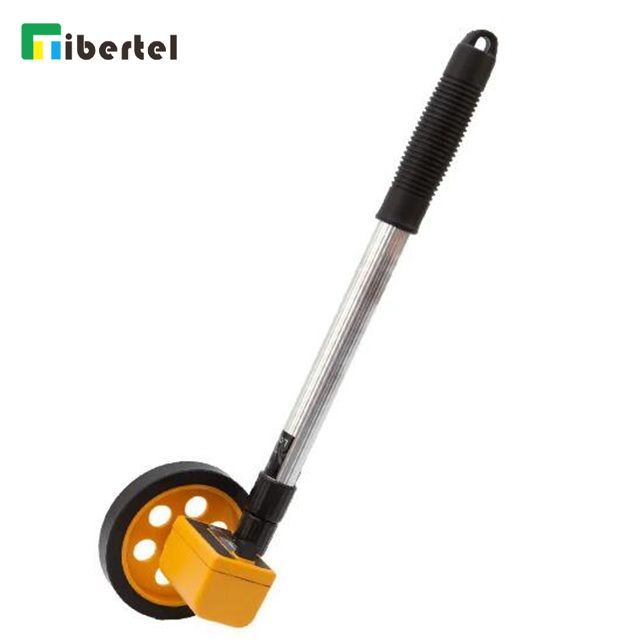

Folding Foldable Measuring Wheel TJ07MW213-106

Home » Products » Site Solutions » Measuring wheel » Folding Foldable Measuring Wheel TJ07MW213-106

PRODUCTS

Descriptions

The digital distance measuring wheel is ideal for laying out and measuring utility lines, road work, and other types of construction. Light weight design makes it easy to use and reducing fatigue.

Digital distance measuring wheel folding foldable measuring wheel measuring instrument walking measuring wheel

RECOMMRND PRODUCTS

Folding Foldable Measuring Wheel TJ07MW213-159

Folding Foldable Measuring Wheel TJ07MW213-142

Folding Foldable Measuring Wheel TJ07MW213-97

Folding Foldable Measuring Wheel TJ07MW202-159

Folding Foldable Measuring Wheel TJ07MW202-142

Folding Foldable Measuring Wheel TJ07MW202-106

Folding Foldable Measuring Wheel TJ07MW202-97

Folding Foldable Measuring Wheel TJ07MW350

Folding Foldable Measuring Wheel TJ07MW253

Folding Foldable Measuring Wheel TJ07MW235

Folding Foldable Measuring Wheel TJ07MW231

Folding Foldable Measuring Wheel TJ07MW219

Folding Foldable Measuring Wheel TJ07MW201

Folding Foldable Measuring Wheel TJ07MW208

Folding Foldable Measuring Wheel TJ07MW206

Folding Foldable Measuring Wheel TJ07MW205-318

Folding Foldable Measuring Wheel TJ07MW205-197

Folding Foldable Measuring Wheel TJ07MW271

Folding Foldable Measuring Wheel TJ07MW230

Folding Foldable Measuring Wheel TJ07MW315-159

Part No.	TJ07MW213-97	TJ07MW213-106	TJ07MW213-142	TJ07MW213-159
Size	4inch		5.5inch	6inch
Measuring range	0-9999.9m
Product extension length	1010mm
Product folded length	450mm
Telescopic rod specs.	φ16mm-φ19mm-φ22mm
Telescopic rod material	aluminum tube
Wheel diameter	97mm	106mm	142mm	159mm
Wheel Material	ABS
Wheel Tread Material	TPR Elastomeric
Hand grip material	TPR elastic plastic
Packing size mm	550370485		550320470	570510470
Pieces per box	15		10	15
Product net weight:	0.38kg		0.42kg	0.42kg

Part No.	TJ07MW213-97	TJ07MW213-106	TJ07MW213-142	TJ07MW213-159
Size	4inch		5.5inch	6inch
Measuring range	0-9999.9m
Product extension length	1010mm
Product folded length	450mm
Telescopic rod specs.	φ16mm-φ19mm-φ22mm
Telescopic rod material	aluminum tube
Wheel diameter	97mm	106mm	142mm	159mm
Wheel Material	ABS
Wheel Tread Material	TPR Elastomeric
Hand grip material	TPR elastic plastic
Packing size mm	550370485		550320470	570510470
Pieces per box	15		10	15
Product net weight:	0.38kg		0.42kg	0.42kg

Availability:



Inquire Add to Basket
