TJ07MW205-318
Fibertel
Availability: | |
---|---|
Descriptions

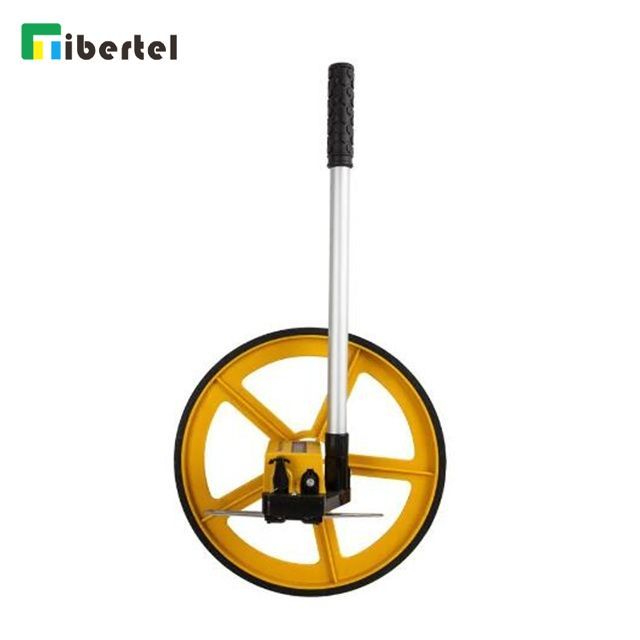

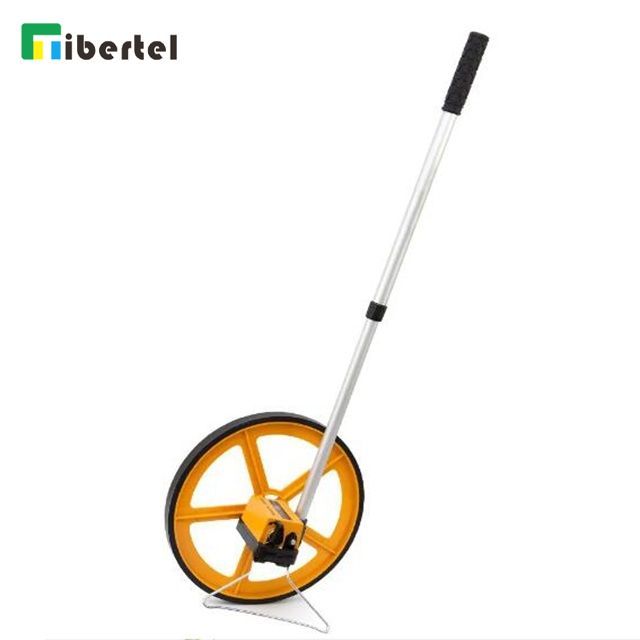

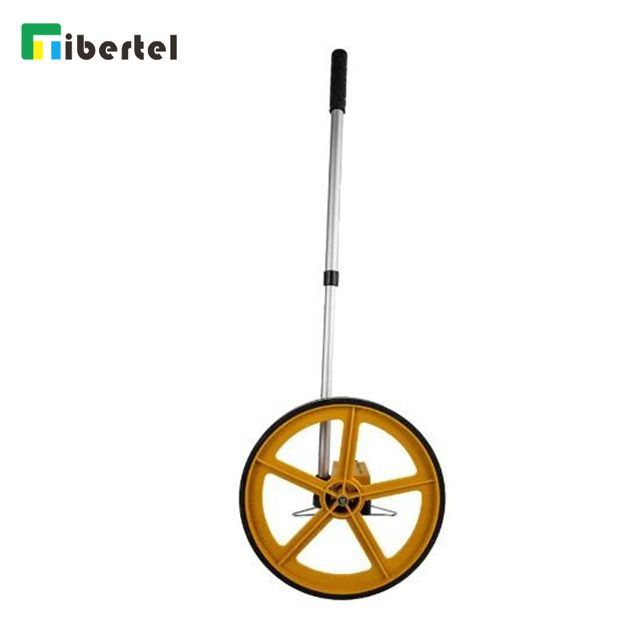

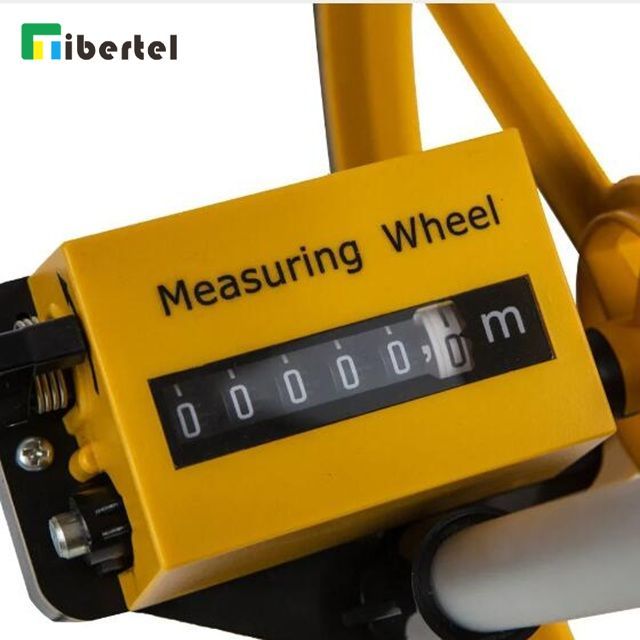

The digital distance measuring wheel is ideal for laying out and measuring utility lines, road work, and other types of construction. Light weight design makes it easy to use and reducing fatigue.
Descriptions
The digital distance measuring wheel is ideal for laying out and measuring utility lines, road work, and other types of construction. Light weight design makes it easy to use and reducing fatigue.
Specifications
Part No. | TJ07MW205-197 | TJ07MW205-318 |
Size | 8inch | 12inch |
Measuring range | 0-99999.9m | |
Product extension length | 950mm | |
Product folded length | 450mm | 630mm |
Telescopic rod specs. | φ19mm-φ22mm-φ25mm | φ19mm-φ22mm |
Telescopic rod material | aluminum tube | |
Wheel diameter | 197mm | 318mm |
Wheel Material | ABS | |
Wheel Tread Material | TPR Elastomeric | |
Hand grip material | TPR elastic plastic | |
Packing size mm | 770*420*480 | 905*470*340 |
Pieces per box | 10 | 6 |
Product net weight: | 0.62kg | 0.9kg |
Specifications
Part No. | TJ07MW205-197 | TJ07MW205-318 |
Size | 8inch | 12inch |
Measuring range | 0-99999.9m | |
Product extension length | 950mm | |
Product folded length | 450mm | 630mm |
Telescopic rod specs. | φ19mm-φ22mm-φ25mm | φ19mm-φ22mm |
Telescopic rod material | aluminum tube | |
Wheel diameter | 197mm | 318mm |
Wheel Material | ABS | |
Wheel Tread Material | TPR Elastomeric | |
Hand grip material | TPR elastic plastic | |
Packing size mm | 770*420*480 | 905*470*340 |
Pieces per box | 10 | 6 |
Product net weight: | 0.62kg | 0.9kg |
