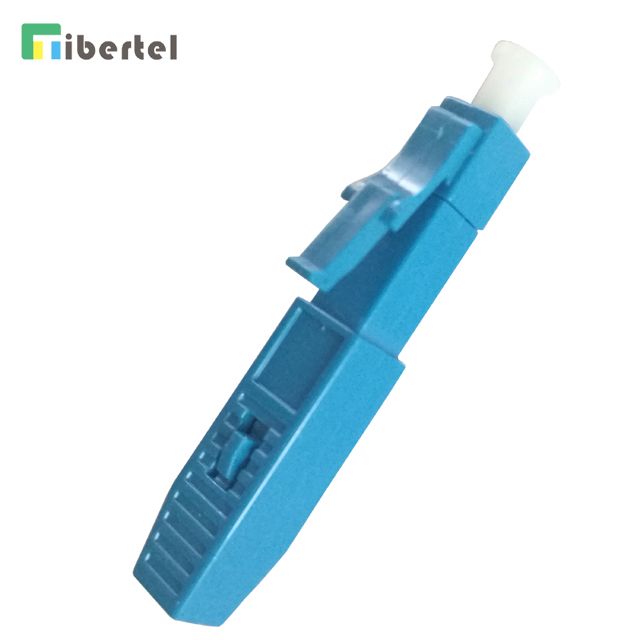

Field Assembly SM LC/UPC FTTH Fast Connector

  • TJ01B1201

  • Fibertel

Availability:

Applications:
Gigabit Ethernet(ATM, SONET etc)
Active device termination
Video
Telecommunication Networks,
Local Area Networks (LANs)
Premise installations
Multimedia
Industrial & military
FTTX

Specifications:
Boots size: 900um, 2.0mm, 3.0mm
Short boots design available.
Polish Type: UPC
Compliance with Telcordia, ANSI, IEC, TIA/EIA, NTT and JIS spec.


Item
Description
Product Name
LC Fiber Optic Fast Connector
Connector Type
LC
Part No.
TJ01B12B1
Fiber Type
Single Mode
Insertion loss
≤0.3dB
Return Loss
≥60dB
Operation Tempreture
-40°C ~ 80°C
Connection Method
Push-On
Tensile strength (3.0mm)
>50N
Operation Time
1000times
