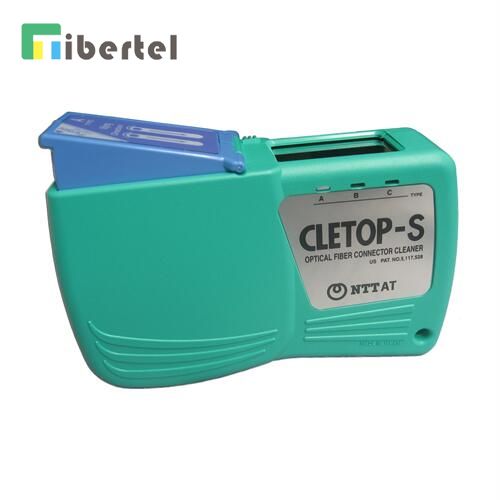

Cletop-S
NTTAT
Feature:
Designed so that all operators can consistently achieve high quality cleaning without alcohol or other solvents.
Palm-sized and lightweight. Easy and safe to use whether in the engineering lab, on the production line, or in the field.
Cleaning tape is replaceable and cost effective.
One cleaning tape can be used for over 400 wipes.
Has excellent anti-static properties to avoid reattachment of dust to the ferrule after cleaning.
The tape can be replaced very easily by a "drop-in" cartridge.
Available for both left hand and right handed operators.
Has excellent anti-static properties for static sensitive applications and can avoid reattchment of dust to the ferrule after cleaning.
| Ferrule | φ2.5mm | φ1.25mm |
| Type Part | Type A | Type B |
| No. | 14110501 | 14110601 |
| Shape of rubber pad | ||
| Cleans per cartridge | more than 400 times | more than 400 times |
| Connectots cleande | SC, SC2, FC, ST, DIN, D4 | MU, LC, MT, MPO, MT-RJ without pins, Biconic |
| Dimension W × H × D mm | 125 × 85 × 35 | |
| Weight (g) | 150 | 150 |
| Packaging | 1 | 1 |
| Remarks | - | - |
Consumables Part No. of cosumable
| Replacement cartridge blue (6 pcs/set) | Replacement cartridge white (6 pcs/set) |
| 14110700 | 14110710 |
Notice1: Please do not use this product for other purposes than cleaning ferrule end-faces.
Notice2: The cleaning perforrmance may change depending upon the environment and contamination types.
