CAT3 UTP Telephone Cable 100pair
Home » Products » Cabling Solutions » Telephone cable » CAT3 UTP Telephone Cable 100pair
Share to:

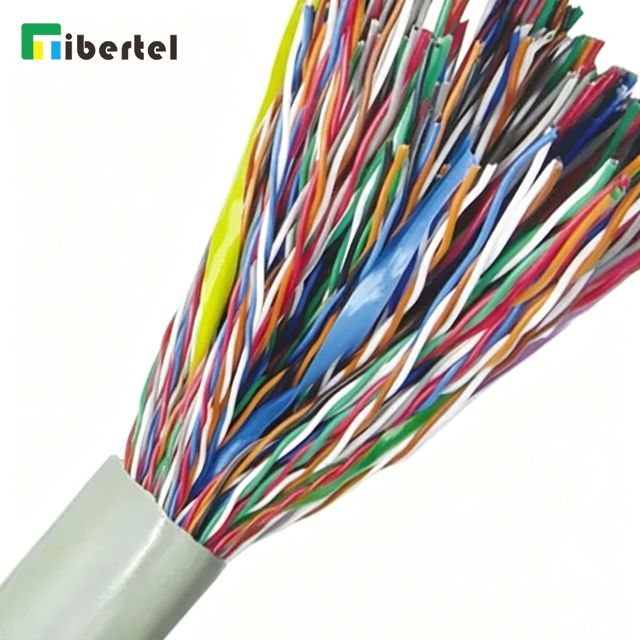

CAT3 UTP Telephone Cable 100pair

Delivery Date: 15-working days Application: Telecommunications
Type: Cat 3 Brand Name: T&J
Weight: pending Number of Conductors: 50 pairs
Nominal Outer Diameter: 15±0.5mm Rated Voltage: 220V
Operating Temperature: -30C~+50C Cable type: CAT3-100P
Number of Pairs: 50 Conductor: Bare solid copper conductor
Nom.O.D.(mm): 0.5±0.01 External O.D.: 20.5±0.5mm
Outer Jacket material: Flame retardant PVC Packing length: 1000meters or on request
Operating Temperature Range: -20 to 75C Impedance (ohms ): 100
Origin: China

Category3 UTP Telephone Cable 100pair


Cat3 cable is a type of twisted pair cable frequently used in voice and data applications, available to provide in 10 pairs / 20 pairs / 50 pairs / 100 pairs...Phone cable is defined by the Electronic Industry Alliance (EIA) and Telecommunication Industry Association (TIA). T&J provide Cat3 phone cable is quality manufactured to meet standards for EIA/TIA 568 and ISO/IEC 11801 specifications.


Technical details for UTP CAT3 Cable 50pair & 100pair:

Part   Number Utp cat3 50P   Indoor Utp cat3 100P   Indoor
Conductor  Diameter(mm) 0.5±0.01 0.5±0.01
 Material Bare   Copper Bare   Copper
 Type Solid Solid
Dielectric(Insulation) Diameter(mm) 0.9±0.01 0.9±0.01
Material Solid   PE Solid   PE
CORE WRAPPING  Material           plastic tape           plastic tape
Thickness (mm) 0.04 0.04
          Jacket(sheath) Thickness   (mm) 1.1 1.3
Diameter(mm) 15±0.5 20.5±0.5
Material Flame   retardant PVC LLPE
Color Grey Flame   retardant PVC
Number of Pairs 50pairs 100pairs
Weight (kgs/km) 325 600
Attenuation(10MHz dB/100m) 6.5 6.5
NEXT (100MHz dB/100m) ≥35.3 ≥35.3
ELFEXT (100MHz dB/100m) ≥23.8 ≥23.8
RL (100MHz dB/100m) ≥20.1 ≥20.1
Impedance (ohms ) 100 100
Operating Temperature Range(℃) -20 to 75 -20 to 75
package 305/1000meters/roll 305/1000meters/roll


category3 UTP Telephone Cable 100pair


100Pair CAT3 UTP Telephone Cable
