Delivery Date: | 20 days | Brand Name: | T&J |
---|---|---|---|

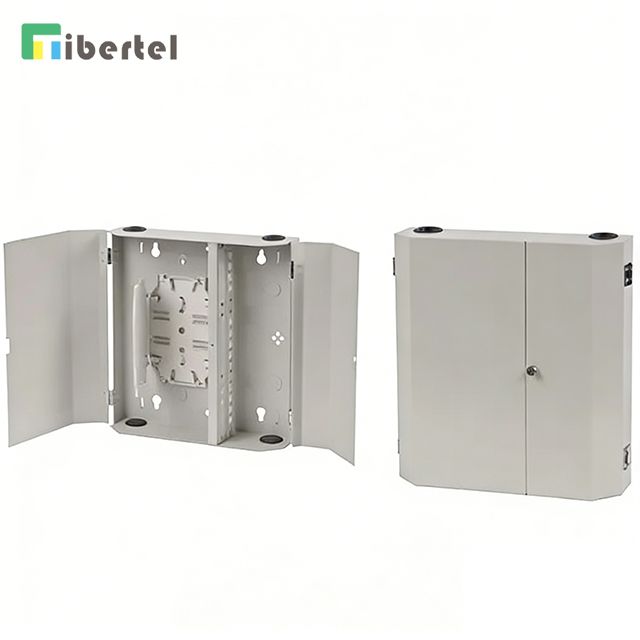

Model No: | DB04B | Capacity: | 48-Fiber |
Material: | Cold rolled steel | Thickness: | 1.2mm |
Dimension: | 360*310*132mm | Working temperature: | -25℃~+60℃ |
Storage temperature: | -25℃~+85℃ | Relative humidity: | ≤85%(+30℃) |
Air pressure: | 70KPa~106Kpa | Origin: | China |
Delivery Date: | 20 days | Brand Name: | T&J |
---|---|---|---|
Model No: | DB04B | Capacity: | 48-Fiber |
Material: | Cold rolled steel | Thickness: | 1.2mm |
Dimension: | 360*310*132mm | Working temperature: | -25℃~+60℃ |
Storage temperature: | -25℃~+85℃ | Relative humidity: | ≤85%(+30℃) |
Air pressure: | 70KPa~106Kpa | Origin: | China |
Thickness: 1.2mm
Color: Black and Ivory white available.
Specifications:
standard installation interface.
The box use good quality Cold Rolled Steel material
Surface with Electrostatic Spray.
Fiber core available in 12-96 fibers, trays available to add as per requested.
Available for bunchy and ribbon cables.
Available for LC, SC, FC, ST, MU, MTRJ and E2000 adaptors.
Enough space for operating.
Features:
• Modular structure: All components are in the form of module to achieve flexible configuration.Components of different models are interchangeable
• Systemization: Products of various capacities can meet indoor or outdoor application requirements.
• Humanization: Products are of humanized management and operation, all front access and detail-orientation.
• Standardization: We strictly follow industry standard and actively participate in the modification of industry specifications.
• Specialization: Technical professionals and production/testing equipment ensure excellent product performance.
• OEM designs are welcome
• Meet GB/T11818 and GB/T7424 compliance
Working situations:
• Working temperature: -25℃~+60℃
• Storage temperature: -25℃~+85℃
• Relative humidity: ≤85%(+30℃)
• Air pressure: 70KPa~106Kpa
Functions:
• Optical cable fixation and protection
• Optical cable termination
• Patching
• Protection of optical fiber and pigtail
Photoelectric Performance:
• Insulation resistance: 1000MΩ (500V DC).
• Dielectric strength of frame HV protection: >3000V (DC)/1min, no breakdown, no arc.
• Adaptor loss: ≤0.2dB
• Optical connector insertion loss: ≤0.2dB
• Re-insertion life: >1000 times mechanical performance
• Plastic parts combustibility: GB51697-85 compliance
Ordering information:
Part Number Size (WxDxH)mm Capacity
DF05A-12 (TJ01EA012) 485 x 260 x 45mm 12-fiber
DF05A-24 (TJ01EA024) 485 x 260 x 90mm 24-fiber
DF05A-36 (TJ01EA036) 485 x 260 x 133mm 36-fiber
DF05A-48 (TJ01EA048) 485 x 260 x 178mm 48-fiber
DF05A-72 (TJ01EA072) 485 x 260 x 223mm 72-fiber
DF05A-96 (TJ01EA096) 485 x 260 x 310mm 96-fiber
DF05A-144 (TJ01EA144) 485 x 260 x 400mm 144-fiber
DF05B-12 (TJ01EB012) 485 x 260 x 45mm 12-fiber
DF05B-24 (TJ01EB024) 483 x 260 x 90mm 24-fiber
DF05B-36 (TJ01EB036) 483 x 260 x 133mm 36-fiber
DF05B-48 (TJ01EB048) 483 x 260 x 178mm 48-fiber
DF05B-72 (TJ01EB072) 483 x 260 x 223mm 72-fiber
DF05B-96 (TJ01EB096) 483 x 260 x 312mm 96-fiber
DF05B-144 (TJ01EB0144) 483 x 260 x 400mm 144-fiber

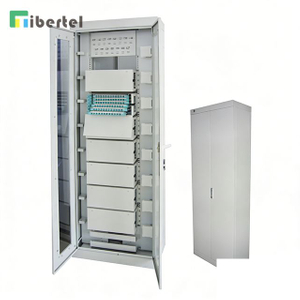

DF05C (TJ01EC576) 800 x 400 x 2000mm 576-fiber
DF05D (TJ01ED576) 800 x 400 x 2200mm 576-fiber
