48-Fiber Wall mounted fiber optical distribution box
Home » Products » FTTx Solutions » ODF Optical distribution frame » 48-Fiber Wall mounted fiber optical distribution box
Share to:

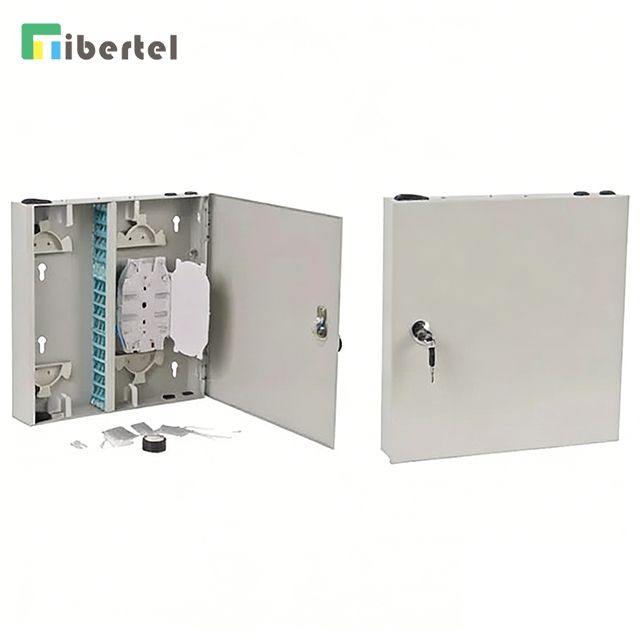

48-Fiber Wall mounted fiber optical distribution box

Thickness: 1.2mm

Color: Black and Ivory white available.


Specifications:

standard installation interface.

The box use good quality Cold Rolled Steel material

Surface with Electrostatic Spray.

Fiber core available in 12-96 fibers, trays available to add as per requested.

Available for bunchy and ribbon cables.

Available for LC, SC, FC, ST, MU, MTRJ and E2000 adaptors.

Enough space for operating.



Features:
• Modular structure: All components are in the form of module to achieve flexible configuration.Components of different models are interchangeable

• Systemization: Products of various capacities can meet indoor or outdoor application requirements.
• Humanization: Products are of humanized management and operation, all front access and detail-orientation.
• Standardization: We strictly follow industry standard and actively participate in the modification of industry specifications.
• Specialization: Technical professionals and production/testing equipment ensure excellent product performance.
• OEM designs are welcome

• Meet GB/T11818 and GB/T7424 compliance


Working situations:
• Working temperature: -25℃~+60℃
• Storage temperature: -25℃~+85℃
• Relative humidity: ≤85%(+30℃)
• Air pressure: 70KPa~106Kpa


Functions:
• Optical cable fixation and protection
• Optical cable termination
• Patching
• Protection of optical fiber and pigtail

Photoelectric Performance:
• Insulation resistance: 1000MΩ (500V DC).
• Dielectric strength of frame HV protection: >3000V (DC)/1min, no breakdown, no arc.
• Adaptor loss: ≤0.2dB
• Optical connector insertion loss: ≤0.2dB
• Re-insertion life: >1000 times mechanical performance
• Plastic parts combustibility: GB51697-85 compliance
