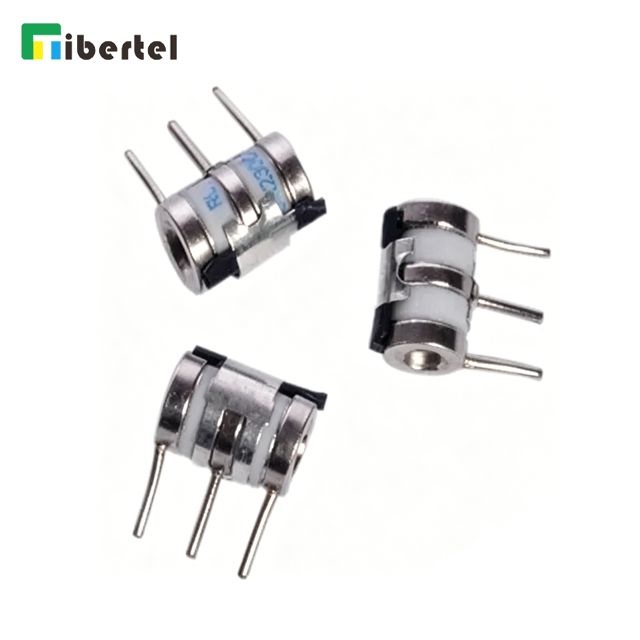

| Delivery Date: | 20 days | Brand Name: | T&J |
|---|---|---|---|
| Part No.: | TLM1201/TJ03A201A | Size: | 7.5*11.5mm |
| Type: | Gas discharge tube w/FS | Pole: | 3 pole |
| Material: | Ceramic | Voltage: | 230V |
| Capacitance: | 5pF | Certificate: | ROHS |
| Origin: | China |
| Delivery Date: | 20 days | Brand Name: | T&J |
|---|---|---|---|
| Part No.: | TLM1201/TJ03A201A | Size: | 7.5*11.5mm |
| Type: | Gas discharge tube w/FS | Pole: | 3 pole |
| Material: | Ceramic | Voltage: | 230V |
| Capacitance: | 5pF | Certificate: | ROHS |
| Origin: | China |
Over-voltage transients are often found in communications and control lines. Cause of such abnormal voltages are lightning strikes, atmospheric lightning discharges, accidental contact between power and communications lines, unexpected rise in the supply voltages of the installation as a result of misoperation, and appearance of voltage higher than normal during switching operations. The over-voltage transients, if not properly taken care of, not only cause damage to delicate components such as semiconductors, ICs and others comprised in the equipment itself, but also are highly dangerous to personnel. Thus, protection against over voltages is necessary for high reliability and long life of general electronic equipment. To this end, the importance is the selection of the best arresters for the over-voltage transients. The protectors or arresters much have high current carrying capability and fast response time. Long life, small size and little weight are additional factors of the consideration.
Product series and Applications:
Ceramic gas discharge tubes are mainly used for protections mentioned below
Main distribution frame (MDF)
Telephone, Electrograph, Modem and all kinds of users' terminal equipments.
CATV / Coaxial line / Video system / Cathode ray tube protection
AC line protection
Power supply protection
Signal line protection
Switching discharge tube
Paste type tube
Coaxial tube
High current GDT with multi-gap
Discharge tube protection unit
Features:
1.Non-Radioactive
2.RoHS Compliant
3.Low Capacitance
4.High insulation resistance
5.Fast response-time
6.Small size
Specifications:
Size: 7.5*11.5mm
Voltage: 230V
Impulse discharge current (8/20us, 10times)(a+b)-e: 5KA
Max.impulse spark-over voltage (1kV/us): 800V
Capacitance: 5pF
Over-voltage transients are often found in communications and control lines. Cause of such abnormal voltages are lightning strikes, atmospheric lightning discharges, accidental contact between power and communications lines, unexpected rise in the supply voltages of the installation as a result of misoperation, and appearance of voltage higher than normal during switching operations. The over-voltage transients, if not properly taken care of, not only cause damage to delicate components such as semiconductors, ICs and others comprised in the equipment itself, but also are highly dangerous to personnel. Thus, protection against over voltages is necessary for high reliability and long life of general electronic equipment. To this end, the importance is the selection of the best arresters for the over-voltage transients. The protectors or arresters much have high current carrying capability and fast response time. Long life, small size and little weight are additional factors of the consideration.
Product series and Applications:
Ceramic gas discharge tubes are mainly used for protections mentioned below
Main distribution frame (MDF)
Telephone, Electrograph, Modem and all kinds of users' terminal equipments.
CATV / Coaxial line / Video system / Cathode ray tube protection
AC line protection
Power supply protection
Signal line protection
Switching discharge tube
Paste type tube
Coaxial tube
High current GDT with multi-gap
Discharge tube protection unit
Features:
1.Non-Radioactive
2.RoHS Compliant
3.Low Capacitance
4.High insulation resistance
5.Fast response-time
6.Small size
Specifications:
Size: 7.5*11.5mm
Voltage: 230V
Impulse discharge current (8/20us, 10times)(a+b)-e: 5KA
Max.impulse spark-over voltage (1kV/us): 800V
Capacitance: 5pF
