Delivery Date: | 20 days | Brand Name: | T&J |
---|---|---|---|
Model: | TLM1206 | Type: | IDC |
Material: | PBT | Application: | PCB |
Housing Color: | Black, Blue, Grey | Contact Blade: | Phosphor bronze |
Size: | available in 2/3/4/6/8/9/10 pair | Operating temperature: | 0-85°C |
Certificate: | RoHS, REACH, CE | Origin: | China |
Delivery Date: | 20 days | Brand Name: | T&J |
---|---|---|---|
Model: | TLM1206 | Type: | IDC |
Material: | PBT | Application: | PCB |
Housing Color: | Black, Blue, Grey | Contact Blade: | Phosphor bronze |
Size: | available in 2/3/4/6/8/9/10 pair | Operating temperature: | 0-85°C |
Certificate: | RoHS, REACH, CE | Origin: | China |

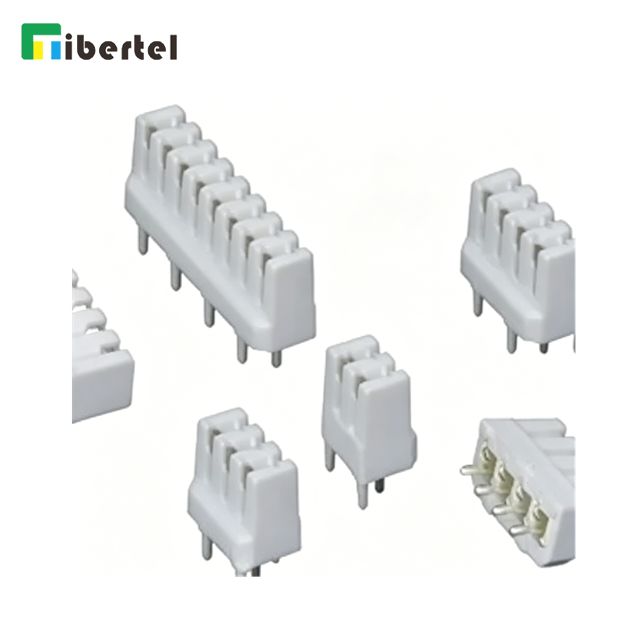

PCB IDC Connector
1. Fast Delivery
2. Small order can be accepted
3. RoHS, REACH, CE
4. Free Samples.
TLM 1206 | |
Material:PBT | |
Insulator: | thermoplastic(ul 94v-0). |
Color: | Grey,black,blue |
Contact: | Phosphor bronze |
Contact plated: | Phosphor bronze |
Specification: | |
Storage Temperature: | -20-70°C. |
Operating temperature: | 0-85°C. |
Contact resistance: | 20mΩMax.(initial). |
Insulation resistance: | 1000mΩ Min. |
Dielectric withstanding voltage: | AC 1000V. |
PCB IDC Connector
1. Fast Delivery
2. Small order can be accepted
3. RoHS, REACH, CE
4. Free Samples.
TLM 1206 | |
Material:PBT | |
Insulator: | thermoplastic(ul 94v-0). |
Color: | Grey,black,blue |
Contact: | Phosphor bronze |
Contact plated: | Phosphor bronze |
Specification: | |
Storage Temperature: | -20-70°C. |
Operating temperature: | 0-85°C. |
Contact resistance: | 20mΩMax.(initial). |
Insulation resistance: | 1000mΩ Min. |
Dielectric withstanding voltage: | AC 1000V. |
