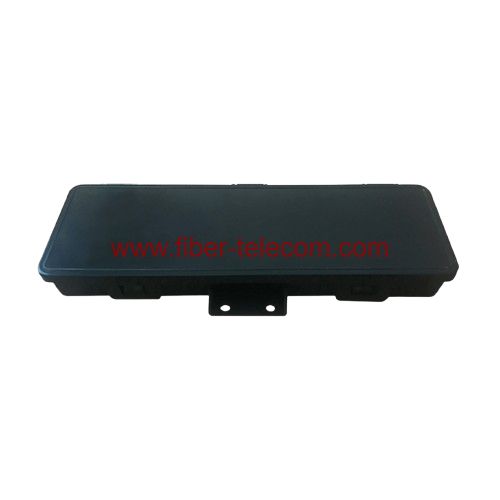

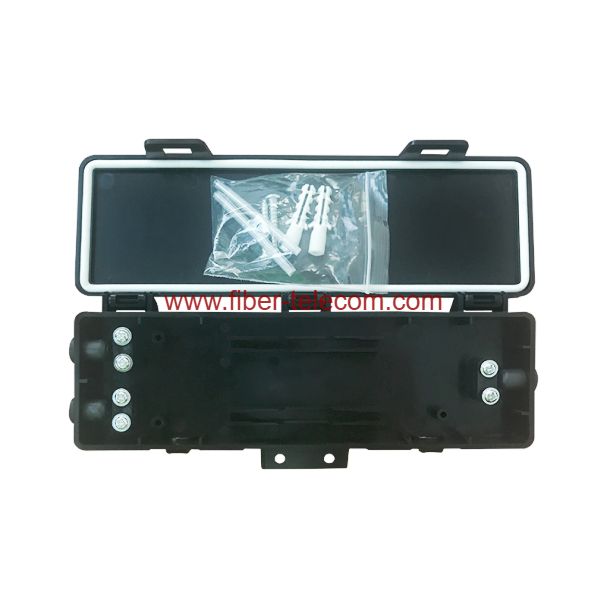

1in & 2out Optic Splice Enclosure

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
  • TJ01EB009

Availability:

Specification:

Items

Specification

Part number:

TJ01EB009

Product Name:

1in & 2out Optic Splice Enclosure

Connector Type:

Cold connector or sleeve

Material:

ABS

Dimensions (W*H*D):

180x70x20mm

Weight:

85 grams

Working Temperature:

-40℃~+65℃

Packing Information:

Poly bag, 200pcs/CTN, 47x31x41cm, 18Kgs


Features:

1). Total enclosed structure, be in nice shape.

2). Material: ABS

3). Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4). Water proof, dust proof, IP grade IP65


Applications:

---Fiber to the desk (FTTD)

---Fiber to the home (FTTH)

---Fiber to the building (TFFB)

---Local area networks

---Wide area networks
