TJ07CP002
Fibertel
Availability: | |
---|---|

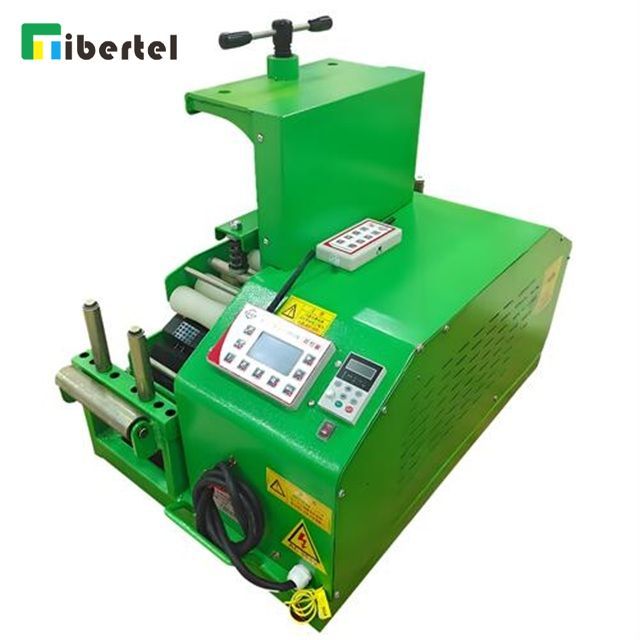

TJ07CP002 Cable Pusher is an electrically operated cable pusher machine without gasoline engine. Compact in structure, light in weight, small in size, efficient in size, convenient for movement, suitable for cable laying in narrow spaces and long distances, such as bridge cables, subway tunnel cables, instrument cables, and electrical control lines. With the features of reasonable structure, excellent performance, smooth operation, low noise, low power consumption, fast conveying speed, and simple and convenient maintenance.
TJ07CP002 Cable Pusher can operate in both positive and negative directions, with four main gears for speed, and can achieve infinite speed control with "+" and "-". The machine and remote control can be used in frequency modulation groups without interfering with each other. And it has multiple joint control functions to achieve remote control.
Product Name | Cable Pusher |
Part No. | TJ07CP002 |
Start Method | Electrical Starting + Manual |
Speed Adjustment | Four Gears + Continuously Variable Speed |
Control Method | Control Panel+ Remote Control |
Power | 3000W |
Towing Speed | 4~36m/min |
Transmission Method | Crawler conveyor |
Maximum Pulling Force | 5600N |
Cable Diameter | 1~18cm |
Dimension | 900*530*670mm |
Machine Weight | 122kgs |
