Delivery Date: | 15 days | Brand Name: | Fiber-telecom |
---|---|---|---|
Model: | TJ03D0012/TJ03D0012 | Function: | Seal 1/2inch jumper cable to antenna |
Dimension(LxWxH): | 150x70x42mm | Inlet: | 1/2inch jumper cable (13~17mm) |
Outlet: | Antenna bolt | Housing material: | PC |
Waterproof level: | IP68 | Rainstorm resistance: | 100E150mm/h |
Packing (pcs/carton): | 60 | Origin: | China |
Delivery Date: | 15 days | Brand Name: | Fiber-telecom |
---|---|---|---|
Model: | TJ03D0012/TJ03D0012 | Function: | Seal 1/2inch jumper cable to antenna |
Dimension(LxWxH): | 150x70x42mm | Inlet: | 1/2inch jumper cable (13~17mm) |
Outlet: | Antenna bolt | Housing material: | PC |
Waterproof level: | IP68 | Rainstorm resistance: | 100E150mm/h |
Packing (pcs/carton): | 60 | Origin: | China |
Description

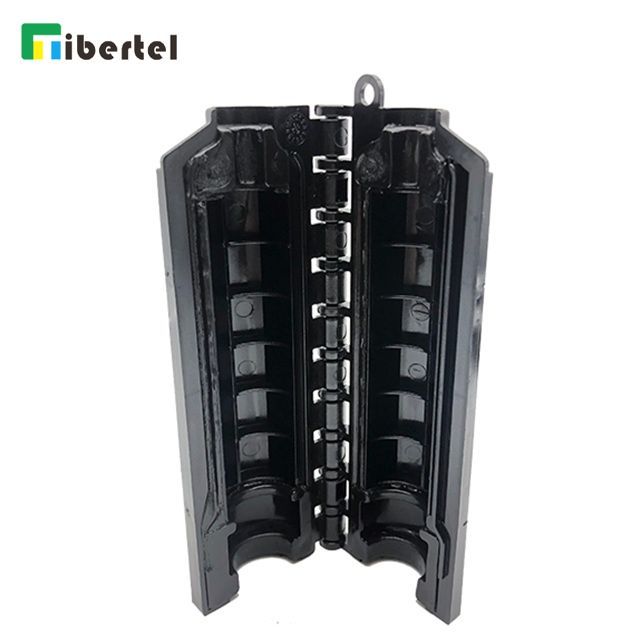

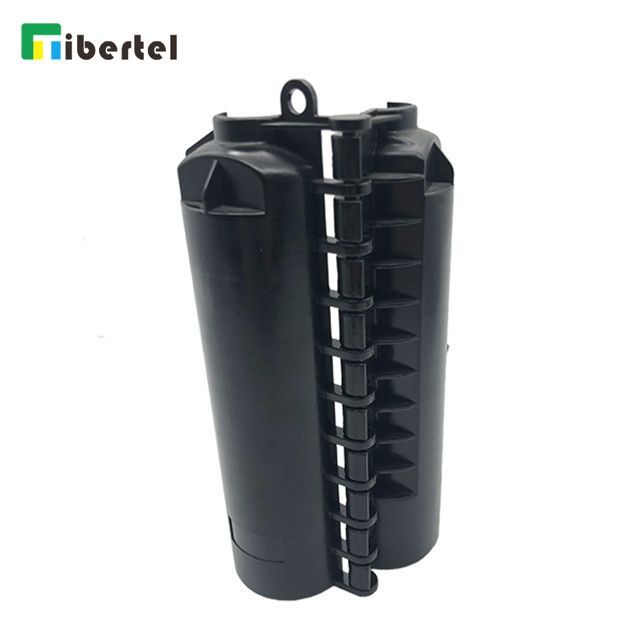

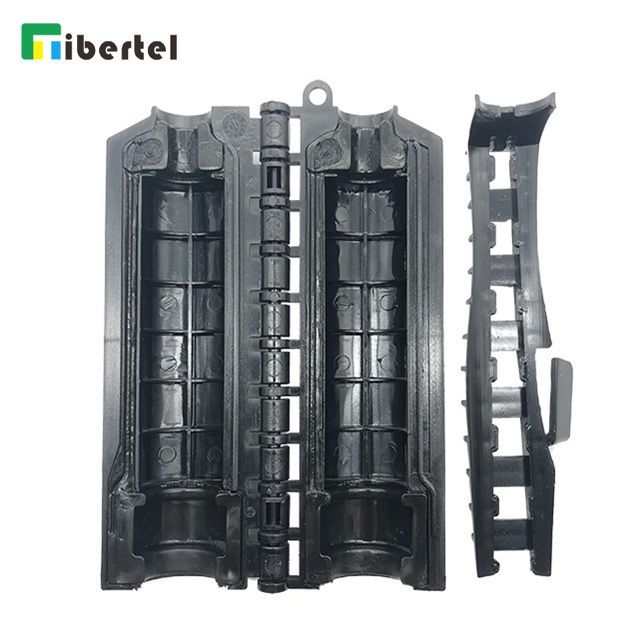

The TJ03D0012 Gel Seal Closure 1/2'' Jumper Cable To Antenna Connector is weatherproofing system sealing jumper-to-feeder and jumper-to-antenna connectors, which are exposed to outside environment. The housing contains an innovative gel material and provide an efficient IP68 moisture block.
Specifications
Model | TJ03D0012 |
Material | Plastic |
IP Rating | IP68 |
Fire Rating | HB |
Temperature Range | -40°C +65°C |
Dimension | L150mm,W70mm,H42mm |
Inlet | 1/2" Jumper Cable(13-17mm) |
Outlet | Antenna bolt |
Features
Application: Wireless cellular cell sites
Usage: Seal 1/2" jumper-to-antenna connector
Advantages: Quick-install, reusable
Material: PC, Silica gel
Fireproof level: HB
Waterproof level: IP68
Life/duration: More than 10 years
Rainstorm resistance: 100E150mm/h
Corrosion and vltra-violate resistance: H2S, passed ultra-violate test
Ice-snow resistance: Up to 100mm, no water leakage, no shape change
Reliable, Openable and Reusable
Packaging
Packaging: 1pc / inner box, 60pcs / CTN / 51*42*675px
G.Weight: 10.5kgs / CTN
Advantages
· quick install, just take seconds.
· easy removable & reusable.
· one step install, simple, don't need training.
· assure a unifom and good sealing jobs.
· wraparound and no disconnection of the connectors.
Certificate
· The third party test report from CTTL (China Telecommunication Technology Labs )
· Material safety ROHS report.
Description
The TJ03D0012 Gel Seal Closure 1/2'' Jumper Cable To Antenna Connector is weatherproofing system sealing jumper-to-feeder and jumper-to-antenna connectors, which are exposed to outside environment. The housing contains an innovative gel material and provide an efficient IP68 moisture block.
Specifications
Model | TJ03D0012 |
Material | Plastic |
IP Rating | IP68 |
Fire Rating | HB |
Temperature Range | -40°C +65°C |
Dimension | L150mm,W70mm,H42mm |
Inlet | 1/2" Jumper Cable(13-17mm) |
Outlet | Antenna bolt |
Features
Application: Wireless cellular cell sites
Usage: Seal 1/2" jumper-to-antenna connector
Advantages: Quick-install, reusable
Material: PC, Silica gel
Fireproof level: HB
Waterproof level: IP68
Life/duration: More than 10 years
Rainstorm resistance: 100E150mm/h
Corrosion and vltra-violate resistance: H2S, passed ultra-violate test
Ice-snow resistance: Up to 100mm, no water leakage, no shape change
Reliable, Openable and Reusable
Packaging
Packaging: 1pc / inner box, 60pcs / CTN / 51*42*675px
G.Weight: 10.5kgs / CTN
Advantages
· quick install, just take seconds.
· easy removable & reusable.
· one step install, simple, don't need training.
· assure a unifom and good sealing jobs.
· wraparound and no disconnection of the connectors.
Certificate
· The third party test report from CTTL (China Telecommunication Technology Labs )
· Material safety ROHS report.
