Drawrope No.1

The drawrope is used to pull-in all types of Telecom cables through the duct.
  • Fibertel

Availability:

Application
Used to pull-in all types of Telecom cables through the duct.



Definition

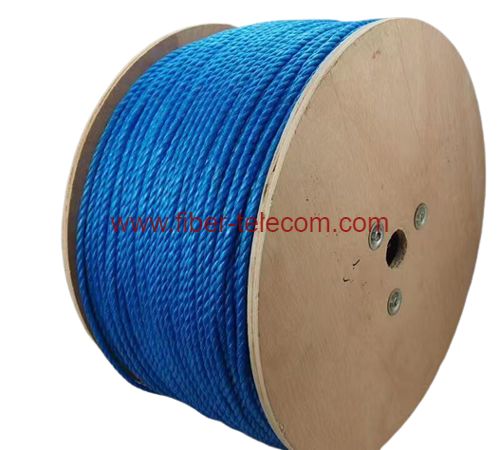

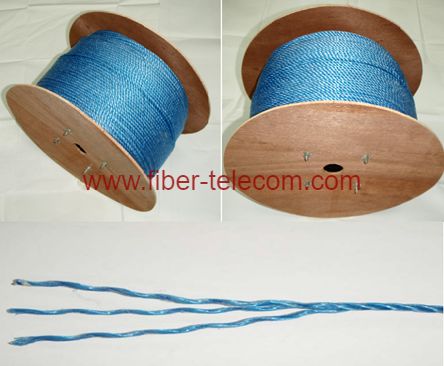

The item is A3 strand, split film polypropylene rope, 6 mm in diameter. The material is suitable for pulling all types of Telecom cables (Light and Heavy weight cables).


Technical Specification for Rope

Diameter

6mm (nominal)

Construction

3 strand, split film polypropylene

Termination

Plain ends

Max Load

600kgs (6000N)

Min B/L

550kgs

Net Weight per 100m

1.7kgs or on request

Color

Blue or Yellow

Working Temperature

-5℃ to +80℃

Reel Length

500 meters

G.Weight (reel)

Approx 10.3kgs

Standard

Compliant with BS EN ISO1346:2004

Quantity per 20ft Container

Max. 920 reels
