Cable Dispenser 2B TJ07DP040

  • TJ07DP040

  • Fibertel

Availability:
Description:

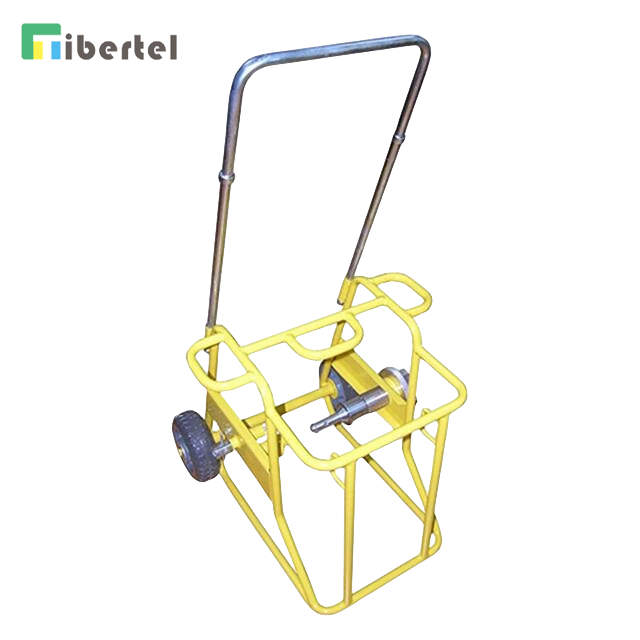

A wheel&fold away handle version of tubular steel framed dropwire dispenser with an adjustable tensioning device prevent  overrun of the drum,the drum is held by means of a spring loaded spindle.


Feature:
*  A specialist cable stand dispenser to BT specification.
*  Manufactured from tubular steel. Powder coated to customer specification or standard yellow.
*  Drum is held by tapered spindle to accommodate varying diameters of drum centre hole, with tensioning device to control drum overrun.
*  Comes with spring loaded drum locking device on opposite side of drum tensioner.
*  Standard wheels are high density plastic with ball bearings for long life and easy maneuvering.
*  Each wheel rated to 250kgs weight.
*  Cast iron heavy duty wheels also available on request.
*  Handle is retractable for convenient storage.



Product Name
Cable Dispenser 2B
Part No.
TJ07DP040
Weight with plastic wheels
10.2Kgs
Frame(W*L)
430mm*500mm
Height with handle retracted
630mm
Height with handle extended
940mm
Color
Yellow, Orange or on request
