Description:
Part No.: TLD064/TJ03B402A
Type: Indoor distribution box 30 pair
Material of Box: ABS plastic
Material of subrack: Stainless steel
Capacity: 30pair
Size: 180*170*75mm
Features:
The connection boxes designed to be loaded with LSA Modules, the modules can be ordered separately or completed on request.
Inside subracks made of stainless steel.
The cover is secured by toolless screws. Supplied with 4 jumper rings and earth post.

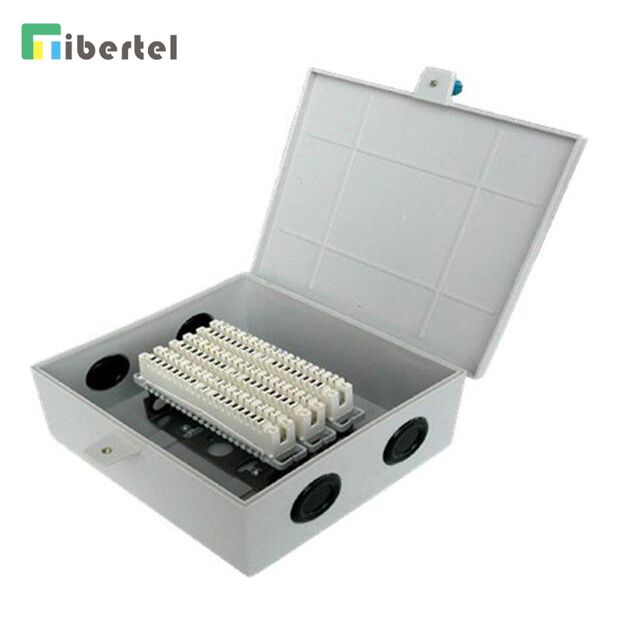

Indoor Distribution Box
Part No. | Capacity | Dimension |
TLD064 | 30 pair | 180*170*75mm |
TLD065 | 50 pair | 190*205*105mm |
TLD066 | 100 pair | 275*205*105mm |
TLD067 | 30 pair | 171*140*75mm |
TLD068 | 50 pair | 209*209*75mm |
TLD069 | 100 pair | 320*215*75mm |
