TJ01E16NS
Fibertel
Availability: | |
---|---|
Description

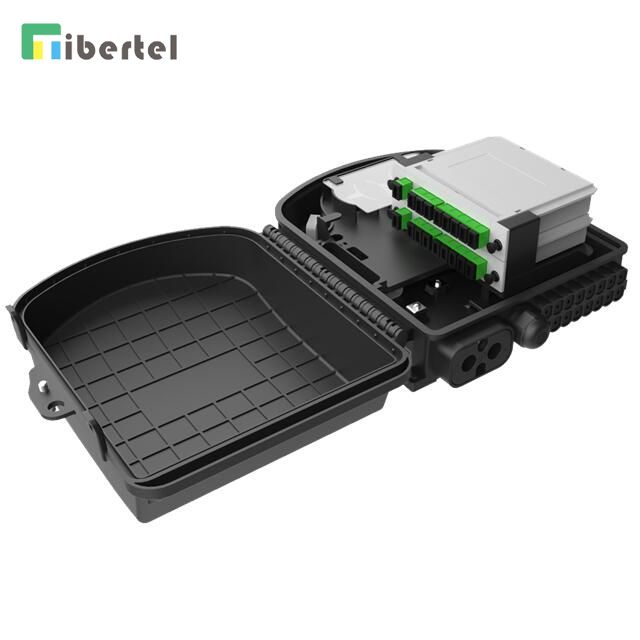

TJ01E16NS Fiber Splitter Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing and distribution can be done in this box, insertion module splitters can be mounted in it, and meanwhile it provides solid protection and management for the FTTx network building.
Features
Anti-UV (Ultraviolet).
Fit the cable diameter ranged from 8mm to 13mm.
Fit cord cable/ patch cord / drop fiber output.
Easy to maintain and extend the capacity.
Fiber bend radius control more than 30mm.
Applications
FTTH access network
Telecommunication network
CATV networks
Data communications network
Local area networks
Specifications
Model | TJ01E16NS |
Installation Method | Wall Mounted/Pole Mounted |
Color | Black/Gray |
Material | PC+ABS |
Capacity Of Splicing | 8 Cores |
Splitter Type | PLC module |
Capacity of Splitter | 2 Slot (1:8 2Pcs , 1:16 1PCS) |
IP Grade | IP 65 |
Size: H×W×D (mm) (Pic 1) | 253×198×100 (MM) |
