Description

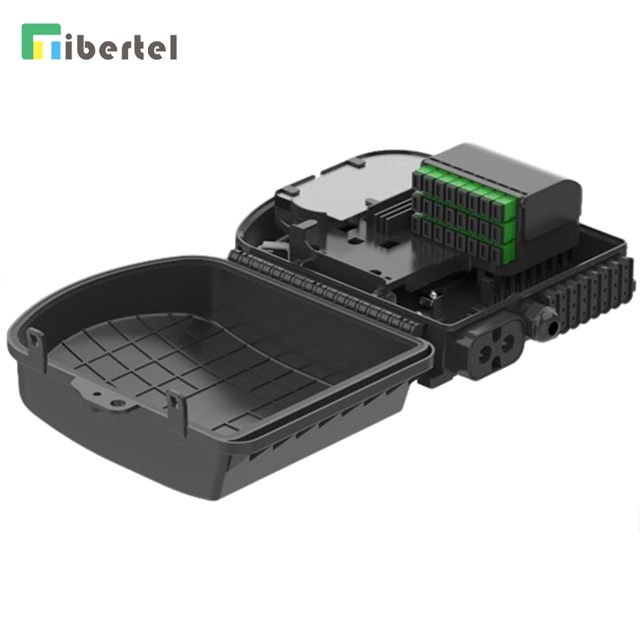

TJ01E24ND Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
Anti-UV (Ultraviolet).
Fit the cable diameter ranged from 8mm to 13mm.
Fit cord cable/ patch cord / drop fiber output.
Easy to maintain and extend the capacity.
Fiber bend radius control more than 30mm.
Applications
FTTH access network
Telecommunication network
CATV networks
Data communications network
Local area networks
Specifications
Model | TJ01E24ND |
Installation Method | Wall Mounted/Pole Mounted |
Color | Black/Gray |
Material | PC+ABS |
Capacity Of Splicing | 32 Cores |
Adapter Capacity | 24 Ports |
Adapter Type | SC |
IP Grade | IP 65 |
Size: H×W×D (mm) (Pic 1) | 253×198×100 (MM) |
