TJ01ET16B
Description

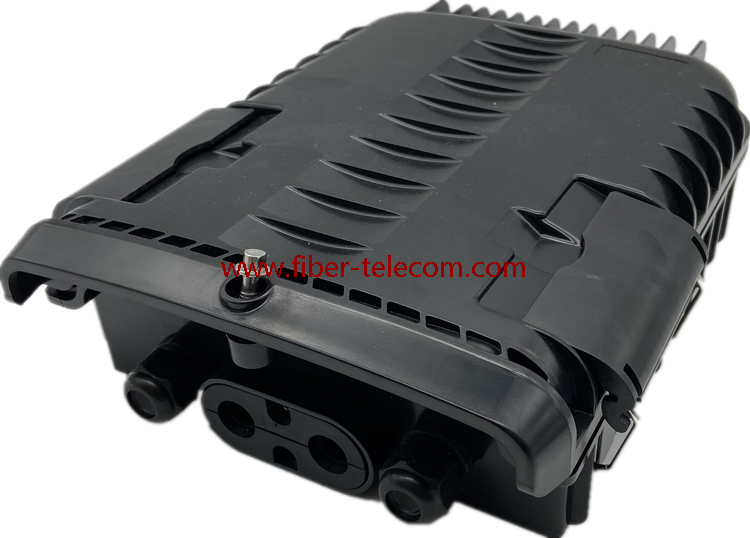

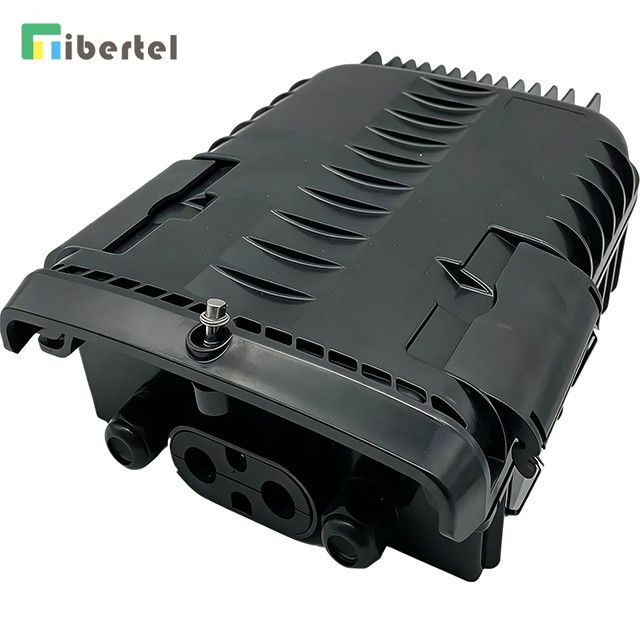

Fibertel fiber termination box TJ01ET16B is able to hold up to 16 fibers. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
Using high impact plastic PC/ABS
Flip over fiber adaptor panel
The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain
Up to 16 FTTH drops, 2 inlet ports, 16 outlet ports
Wall and pole mountable
180 degree access with 2pcs of buckled lock structure.
IP65 Protection
Applications
Wall mounting and Pole mounting installation
FTTH pre-installation and filed installation
Configuration
Material | Size | Max Capacity | Nos of Adaptor | Weight | Color | |
PC+ABS (UV Resistant) | A*B*C(mm) 290*210*78 | Splice 16 Fibers | PLC Splitter 1x8 or 1x16 | 16pcs of SC SX | 1.2kg | Black |
Standard Accessories
Splice tray, wall mounted kits, fiber protective sleeves, frame for LGX PLC splitter, cable protection sleeves, key, PG 13.5 cable glands for distribution ports. And Pole mounted kits (optional accessories).
