TJ01EC08A
Fibertel
Description

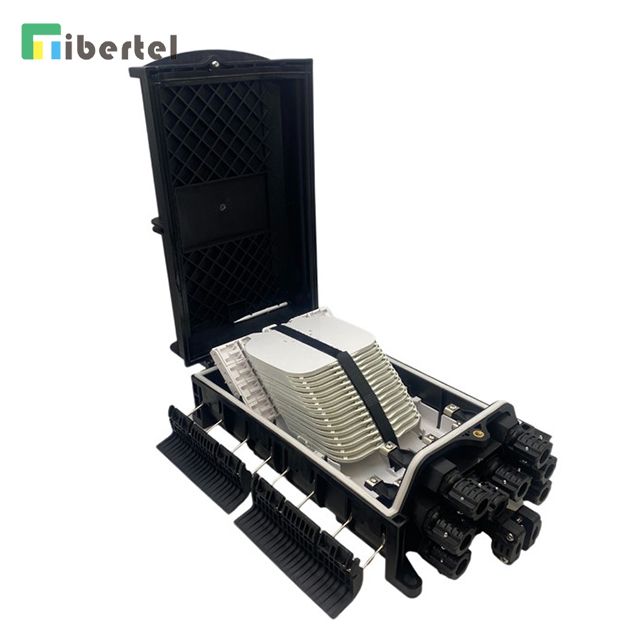

Fibertel Flip Over Joint Box 196 Fibers 8 Ports TJ01EC08A is a newly pre-connected and plug-in designed by Fibertel at the end of 2023, it is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing and termination can be done in this box, separate cover and base design with IP68 protection.
Features
Anti-UV (Ultraviolet).
Splicing and Pre-connected supported.
Easy to maintain and extend the capacity.
Applications
FTTH access network
Telecommunication network
CATV networks
Data communications network
Local area networks
Specifications
Model | TJ01EC08A |
Installation Method | Wall Mounted/Pole Mounted |
Color | Black/Gray on or request |
Material | PC+ABS or ABS |
Cable Entry Ports | 2 ports |
Capacity Of Splicing | 144 fibers |
Adapter Capacity | 8 Ports |
Adapter Type | SC |
IP Grade | IP 68 |
Size H×W×D | 395×210×120 (MM) |
Weight | 2.74kgs |
