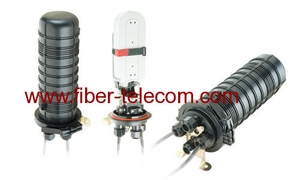

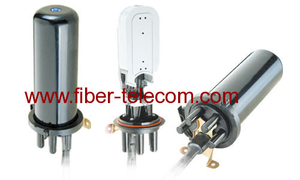

Vertical type Heat-shrink Optical Fiber Enclosure
Home » Products » FTTx Solutions » Fiber optic enclosure » Vertical type Heat-shrink Optical Fiber Enclosure
Share to:

Vertical type Heat-shrink Optical Fiber Enclosure

  • TJ01E1203
Delivery Date:15-working daysBrand Name:T&J
Model:TJ01E1203Application:Aerial, Undergrounerial,  duct and manhole wall use
Sealingstructure:Heat-shrinkable sealingDimention:dia.310*190mm
Cable ports:4Max. capacity:6-48 bunchy fiber
Compliant:RoHSDiameter   of fiber cable:Φ8mm ~ Φ20 mm
Weight(excluding outside box):1550g -1740gOrigin:China


1. Scope of application

This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.



The scope of application is: aerial, underground, duct and manhole wall use. The ambient temperature ranges from –40℃ to +65℃.


2. Basic structure and configuration

2.1 Dimension and capacity

Outside   dimension (Height x Diameter)

299mm×178mm

Weight   (excluding outside box)

1550g— 1740g

Number   of inlet/out ports

5   pieces in general

Diameter   of fiber cable

Φ8mm~Φ20 mm

Capacity   of FOSC

Bunchy:6-48(cores)



2.2 Main components

No.

Name of components

Quantity

Usage

Remarks

1

FOSC   cover

1   piece

Protecting fiber cable splices   in whole

Height   x Diameter

226mm   x 132mm

2

Fiber   optic splice tray (FOST)

Max. 4 trays (bunchy)



Fixing heat shrinkable   protective sleeve and holding fibers

Suitable for: Bunchy:12(cores)

3

Fiber   holding tray

1 pcs

Holding fibers with protective   coat


4

Base

1set

Fixing   internal and external structure


5

Plastic   hoop

1   set

Fixing between FOSC cover and   base


6

Seal   fitting

1   piece

Sealing between FOSC cover and   base


7

Pressure testing valve

1   set

After   inject air, it is used for  pressure   testing and sealing testing

Configuration   as per requirement

8

Earthing deriving device

1   set

Deriving   metal parts of fiber cables in FOSC for earthing connection

Configuration   as per requirement



2.3 Main accessories and special tools

No.

Name   of accessories

Quantity

Usage

Remarks

1

Heat shrinkable protective sleeve


Protecting fiber splices

Configuration as   per capacity

2

Nylon tie


Fixing   fiber with protective coat

Configuration as   per capacity

3

Heat shrinkable fixing sleeve   (single)


Fixing and sealing single fiber cable

Configuration   as per requirement

4

Heat shrinkable fixing sleeve (mass)


Fixing and sealing mass of fiber   cable

Configuration   as per requirement

5

Branching clip


Branching fiber cables

Configuration   as per requirement

6

Earthing wire

1 piece

Putting through between earthing   devices


7

Desiccant

1   bag

Put into FOSC before sealing for   desiccating air


8

Labeling paper

1 piece

Labeling fibers


9

Special wrench

1 piece

Tightening nut of reinforced core


10

Metal hoop

1 set

For wall mounting and pole hugging


11

Buffer tube



decided   by customers

Hitched to fibers and fixed with   FOST, managing buffer.

Configuration as per requirement
