SC-ST hybrid Adaptor Simplex
Home » Products » FTTx Solutions » Fiber optic adaptor » SC-ST hybrid Adaptor Simplex
Share to:

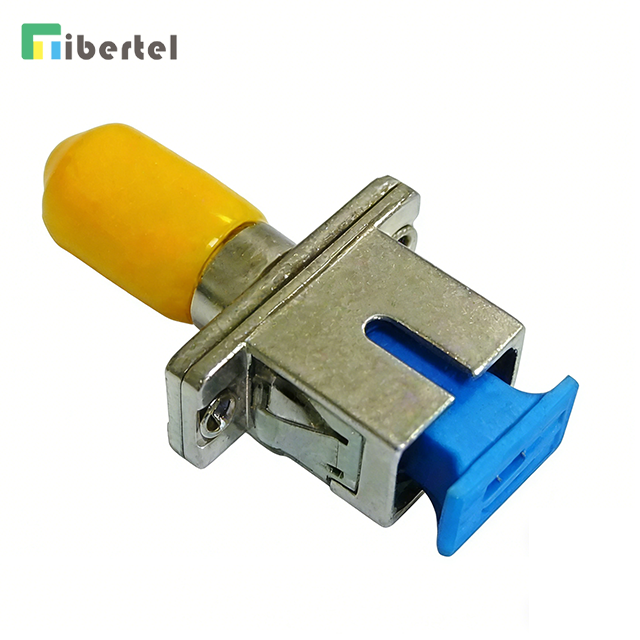

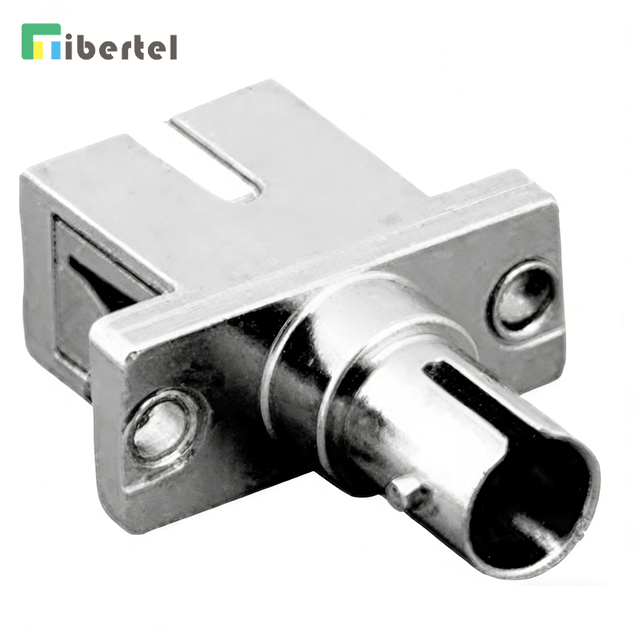

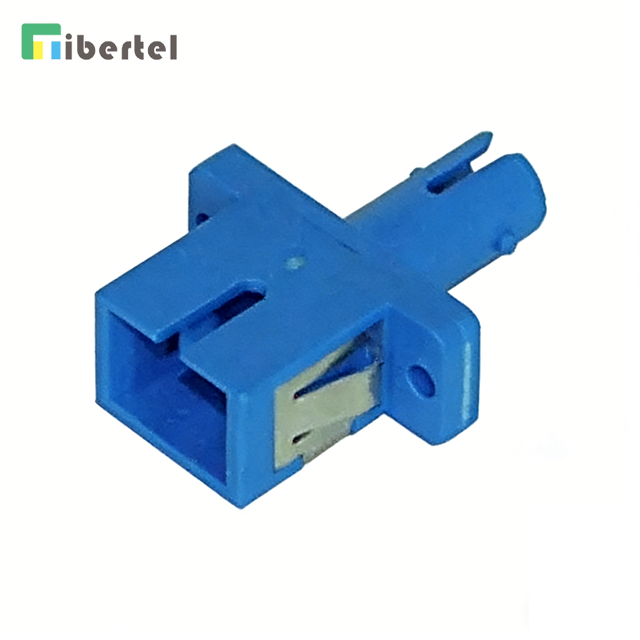

SC-ST hybrid Adaptor Simplex

The fiber optic adaptor kits offer an ideal product for application requiring cable-to-cable connections. It can be in standard and hybrid type for most popular connectors including FC, SC, LC, ST, MU, MTRJ, E2000, DIN and MPO.

An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.

Hybrid fiber optic adapters offer a solution for hybrid applications where the two different kinds of fiber connectors or cable assemblies need to be linked with each other.


Application:

1.Telecommunication Networks


2. Test Equipment

3. Local Area Network

4. CATV

5. Connecting with various types of ferrules.




Features:

1. Good compatibility

2. High precision of mechanical dimensions

3. Good reliability & stability

4. Ceramic or Bronze Sleeve

5. Three types of fiber stub port: PC/APC/UPC

6. Single mode/Muti-mode

7. Various styles: Squareness, Circular and Square link together




Specifications

Parameter

Unit

LC,SC,FC,MU,ST, SC-ST,FC-ST,  FC-SC,   FC-LC, FC-MU

MTRJ

E2000

SM

MM

SM

MM

SM

PC

UPC

APC

PC

PC

UPC

PC

PC

APC

Insertion Loss (Typical)

db

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.2

≤0.3

Return   Loss

db

≥45

≥50

≥60

≥30

≥45

≥50

≥35

≥55

≥75

Exchangeability

db

≤0.2

≤0.2

≤0.2

Repeatability

db

≤0.2

≤0.2

≤0.2

Durability

time

>1000

>1000

>1000

Operating   Temperature

-40~+75

-40~+75

-40~+75

Storage   Temperature

-45~+85

-45~+85

-45~+85
